How to Make Decorative Marquee Letters

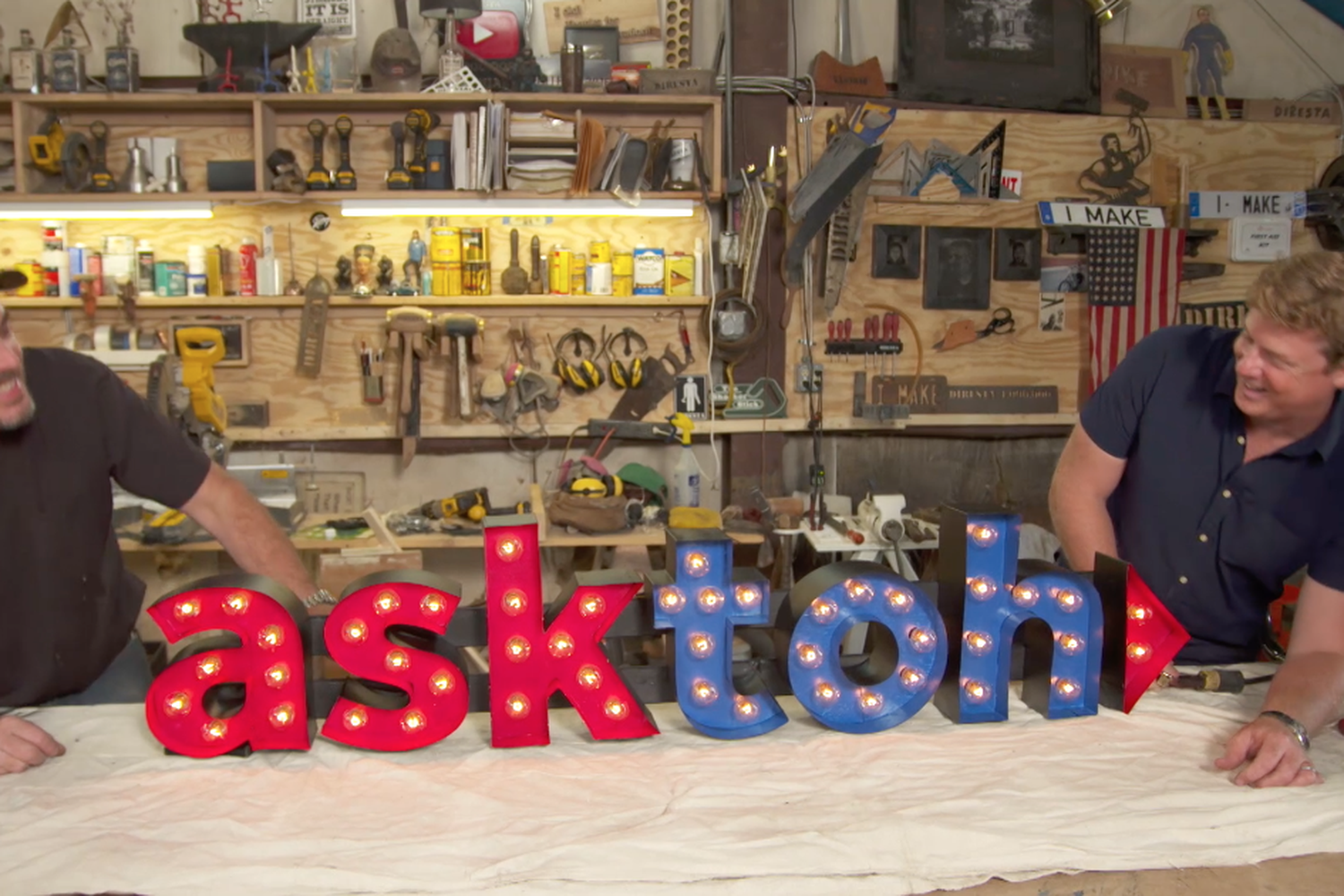

Decorative marquee letters are a trendy and eye-catching way to add personality to any space. These illuminated letters can transform a room and create a warm ambiance. With a little creativity and some basic tools, you can craft your own custom marquee letters at home. This Old House expert Jimmy DiResta demonstrates the process of creating these stylish light-up letters, perfect for adding a personal touch to your decor.

Materials and Tools Needed for Decorative Marquee Letters

Before diving into the project, gather the following materials and tools:

• Bandsaw or jigsaw
• Drill and drill bits
• Flashing (4-inch wide)
• Hot glue gun and glue sticks
• Nail gun and nails
• Plywood
• Sandpaper
• Screwdriver
• Silicone caulk
• Speed square
• Spray paint (primer and desired colors)
• String lights
• Wood screws

Choosing the Design for Your Marquee Letters

The first step in creating your marquee letters is deciding on the design. Consider the following factors:

• Font style: Select a font that complements your decor and personal taste. Serif or sans-serif fonts work well for marquee letters.
• Letter size: Determine the size based on where you plan to display the letters and the available space.
• Word or phrase: Choose a word, initials, or phrase that holds meaning for you or fits the intended space.

STEP 1: Trace the Letters

To begin the project, you’ll need to create templates for your chosen letters. Here’s how:

1. Print or draw your chosen letters on paper at the desired size.
2. Cut out the paper letters to use as templates.
3. Trace the letter templates onto plywood using a pencil or marker

STEP 2: Cut the Letters

Once you have your templates traced onto the plywood, it’s time to cut out the letters:

1. Use a bandsaw or jigsaw to carefully cut along the traced lines.
2. Take your time, especially around curves and corners, to ensure smooth edges.
3. Sand the cut edges of each letter to remove any roughness.

STEP 3: Plan the Lights Pattern for Your Marquee Letters

Count out how many lights are on the string lights. With that number in mind, trace out on the letters Before drilling holes for the lights, plan out their placement:

1. Count the total number of lights on your string.
2. Divide the lights evenly among your letters.
3. Mark spots on each letter where you want to place the lights, ensuring even spacing.

STEP 4: Drill Holes for the Lights and Attach Wooden Spacers to the Marquee Letters

With your light pattern planned, it’s time to prepare the letters for illumination:

1. Use a drill to create holes at each marked spot for the lights.
2. Sand around the drilled holes to ensure a smooth finish.
3. Cut small wooden spacers from leftover plywood.
4. Glue these spacers to the back of each letter to create room for wiring.

STEP 5: Shape and Attach the Flashing to Your Marquee Lettering

The metal flashing creates the channel effect, giving depth to your letters:

1. Cut strips of 4-inch wide flashing to fit around each letter.
2. Use a speed square as a makeshift brake to bend the flashing around curves.
3. Secure the flashing to the letters using hot glue.
4. Once the glue sets, reinforce the attachment with a nail gun.

Jimmy demonstrates how to handle the flashing so that it adheres properly to the letters. The flashing not only adds depth but also helps in containing and reflecting the light, enhancing the glow of the letters.

STEP 6: Create Wooden Backing for Your Marquee Letters

Cut two pieces of scrap wood the approximate length of the letters.

STEP 7: Prime and Paint the Marquee Letters

Now it’s time to give your letters some color:

1. Prime all surfaces of the letters with spray paint primer.
2. Once dry, paint the inside of the letters with your chosen color.
3. Flip the letters over and cover the drilled holes with painter’s tape.
4. Paint the outside and edges of the letters with your desired color.
5. Allow all painted surfaces to dry completely.

STEP 8: Cover the Holes in the Marquee Letters with Painter’s Tape

Flip all the letters upside down and cover the holes with painter’s tape to prevent paint from spraying to the other side.

STEP 9: Finish Painting the Marquee Letters and Backing

Spray paint the outside letters with the desired color. Paint the two pieces of scrap wood in the same color for the backing. Allow everything to fully dry.

STEP 10: Installing the Lights

With your letters painted and dry, it’s time to add the lights:

1. Remove the lightbulbs from the string lights.
2. Starting from one end, hot glue each socket into its corresponding hole.
3. Secure each connection with a dab of silicone caulk for added stability.
4. Once all sockets are in place, screw the lightbulbs back in.

Silicone caulk also provides protection against any dislodgement of the sockets, making the setup more durable.

STEP 11: Attach the Marquee Letters to the Backing

To keep your marquee letters together and ready for display:

1. Cut two pieces of scrap wood to the approximate length of your completed word or phrase.
2. Pre-drill holes in the backing pieces to align with the spacers on your letters.
3. Secure the letters to the backing using wood screws and a screwdriver.

Troubleshooting Common Marquee Lettering Issues

Even with careful planning, you might encounter some challenges:

• Uneven lighting: If some areas appear dimmer, consider adding reflective material inside the letters to enhance light distribution.
• Loose flashing: Apply additional hot glue or nails to secure any loose sections.
• Paint imperfections: Touch up any scratches or uneven areas with a small brush and matching paint.

Small fixes can make a significant difference in the overall look of the lights.

Enhancing Your Marquee Letters

Consider adding these extra touches to elevate your marquee letters:

Dimmable Lights

If you plan to use your marquee letters in various settings, consider using dimmable lights. This feature allows you to adjust the brightness according to the ambiance you wish to create. Dimmable lights add versatility to your marquee letters.

Reflective Paint

Using reflective paint on the inside of your letters can amplify the light, making the letters brighter. Reflective paint helps in bouncing the light within the letters, creating a more pronounced and glowing effect.

Patterned Backgrounds

Mounting your letters on a patterned background can add an artistic touch. Choose patterns that complement the design of your letters and fit well with the overall decor. This enhancement can turn your marquee letters into a piece of wall art.

Our Conclusion

Creating your own decorative marquee letters is a rewarding DIY project that adds a personal touch to your home decor. With some basic tools and materials, you can craft a unique, illuminated piece that serves as both functional lighting and eye-catching art. Whether for a special event or everyday display, these custom letters are sure to make a statement in any space.
