Attic Door Insulation Guide

While many homeowners insulate their attic floors, attic doors sometimes go overlooked. An uninsulated attic door can lead to significant heat loss in winter and unwanted heat gain in summer, resulting in higher energy bills and a less comfortable home. In this guide, we’ll explore various insulation methods and step-by-step instructions to help you tackle this energy-saving project.

Why Attic Door Insulation Is Important

Without the right insulation, your attic door becomes a gateway for heated or cooled air to escape, essentially creating a hole in your home’s thermal barrier. This can lead to increased energy consumption as your HVAC system works harder to reach your preferred temperatures. By insulating the door, you can significantly reduce heat transfer, lower energy costs, and improve your home’s overall comfort.

Durable attic door insulation can also extend your HVAC system’s life span. When your heating and cooling systems don’t have to work as hard to regulate temperatures, they experience less wear and tear. This reduces maintenance costs and minimizes the need for premature replacements, resulting in long-term savings.

Types of Attic Doors and Their Insulation Challenges

Different types of attic doors have different insulation challenges. Understanding them will help you choose the most effective method for your home.

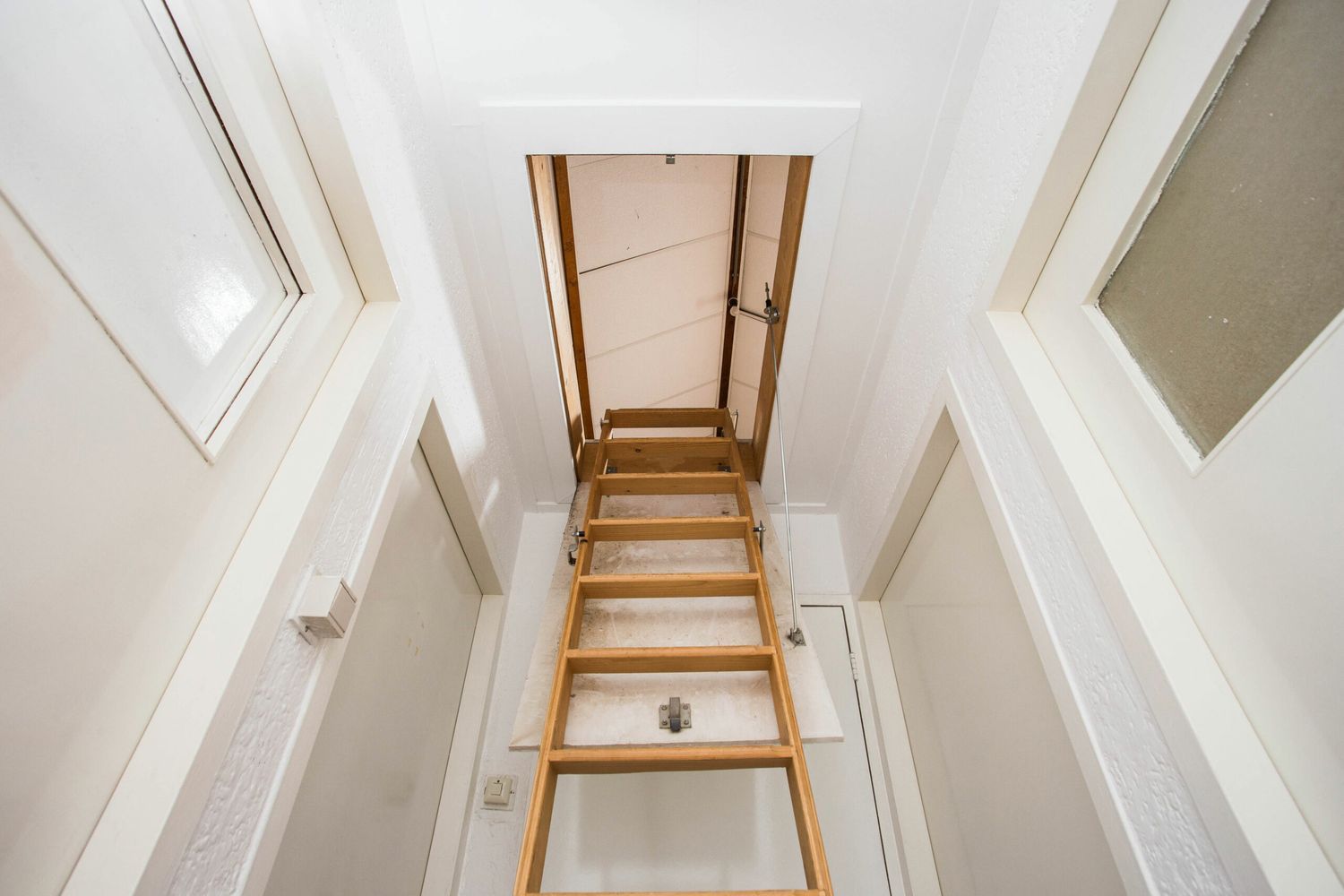

Pull-Down Stairs

Pull-down stairs are a common attic access type. They pose a particular challenge due to their moving parts and the need for clearance when opened. Insulating pull-down stairs often requires a custom approach to guarantee good coverage without impeding their usefulness.

A tight seal is especially important with pull-down stairs. Drafts can easily enter through gaps around the edges, leading to energy loss. Specialized attic stair covers may be worth considering to deal with this issue effectively.

Scuttle Holes

Scuttle holes are simple hatch-style openings in the ceiling. While they’re easier to insulate than pull-down stairs, they still require careful attention to create an airtight seal when closed. Using appropriate weather stripping alongside with your chosen insulation material helps you get the best results.

Knee Wall Doors

Found in finished attics with sloped ceilings, knee wall doors provide access to storage areas behind the walls. These doors need insulation that can withstand frequent use while keeping a tight seal. Additional measures, such as adding a draft stopper or latch, can improve the insulation’s effectiveness by stopping air leakage.

Measuring Your Attic Door for Insulation

Before buying materials or starting the insulation process, you need accurate attic door measurements. Measure the opening’s length, width, and depth and the height of any folded stairs (if you have them).

Based on these measurements, consider the type and amount of insulation you need. Make sure you also measure any irregularities or obstructions around the attic door that may affect the fit of your insulation. Precision at this stage can save time and complications during installation.

Materials Needed for Attic Door Insulation

Here are the tools and materials you’ll need for a successful attic door insulation project.

Insulation Materials

Choose from the following:

• Fiberglass batts
• Premade attic covers
• Rigid foam boards (EPS, XPS, or Polyiso)
• Reflective foil insulation

Consider factors like thermal resistance, ease of installation, and overall effectiveness.

Tools and Accessories

You’ll need the following:

• Caulk gun and construction adhesive
• Construction adhesive
• Measuring tape
• Packing or duct tape
• Staple gun and staples
• Utility knife or saw
• Weather stripping

DIY Attic Door Insulation Methods

Several do-it-yourself (DIY) methods can effectively insulate your attic door, each with its own advantages.

Fiberglass Insulation Technique

Fiberglass insulation is an affordable and easy-to-install option for attic door insulation. To apply fiberglass insulation, do the following:

1. Cut batts to slightly overhang the door’s edges (you may need two pieces).
2. Place the insulation against the door with the fiberglass facing down.
3. Staple the insulation to the door.
4. Avoid compressing multiple layers, as this reduces efficiency.
5. If applicable, apply adhesive-backed weather stripping to the door’s perimeter to make the seal even stronger.

Fiberglass insulation is flexible and easy to use. However, it must be kept dry, as moisture can reduce its effectiveness over time and foster mold growth.

Rigid Foam Insulation Box Method

Creating a box from rigid foam insulation offers even better insulation and air-tightness than fiberglass. Here’s how to make and install a rigid foam insulation box:

1. Measure the framed opening and folded stairs height, if applicable.
2. Transfer measurements to a sheet of rigid insulation.
3. Mark out the sides of the box that will correspond to the framed opening (two long, two short). If there are stairs, make the pieces’ width a couple of inches wider than the height of the folded stairs so that when closed, the stairs won’t hit the box.
4. Assemble the box using construction adhesive and tape. Check to make sure the box is the same size as the framed opening.
5. Once the adhesive is dry, fit the box over the attic opening.
6. Add weather stripping to the box’s bottom edges for an extra seal.

A rigid foam insulation box has excellent thermal resistance and durability. It can be designed to fit snugly, effectively eliminating drafts. To maximize its efficiency, consider additional sealing techniques, such as caulking around the edges.

Reflective Foil Insulation Approach

Reflective foil insulation is lightweight and easy to install. It works by reflecting radiant heat, making it particularly useful in hot climates. To use reflective foil:

1. Cut the foil to size, allowing for overlap.
2. Staple or tape the foil to the attic side of the door.
3. Make sure all edges are sealed to prevent air leakage.

While reflective foil insulation is great for warm climates, it may not be the best in colder areas where additional layers of insulation may be necessary to keep out the chill. Combining reflective foil with other materials can be a better solution.

Professional Attic Door Insulation Solutions

For those wanting a more polished finish or who lack the DIY experience, consider hiring an expert installation team.

Using professionals will guarantee that your attic door insulation is installed correctly. Professionals are trained to handle various insulation challenges and can give tailored advice for your specific situation.

Premade Insulation Covers

Many hardware stores and home centers offer premade attic stair covers. These typically consist of insulated fabric or plastic designed to fit over pull-down stairs or hatches. They’re easy to install and have a neat appearance.

Premade covers are convenient and can be easily removed. However, they need to fit snugly and seal properly for the best energy efficiency.

Custom-Fitted Insulation Systems

Professional insulation companies can create custom-fitted covers or boxes tailored to your specific attic door. These solutions often provide superior insulation and air sealing but come at a higher cost.

Custom solutions guarantee that every detail is considered, delivering maximum energy savings. Investing in a custom-fitted system can be particularly beneficial for homes with unusal attic access points or challenging insulation requirements.

Benefits of Attic Door Insulation

Investing time in attic door insulation has several advantages for homeowners.

Energy Savings

A well-insulated attic door can significantly reduce heat transfer, leading to lower heating and cooling costs. In fact, over time, the cost of insulation may be covered first.

Improved Home Comfort

Attic door insulation makes your home more liveable and comfortable by minimizing drafts and keeping a more consistent temperature throughout the house. You’ll likely notice fewer cold spots in winter and a cooler upper floor in summer. It can lead to better sleep, productivity, and overall well-being.

Moisture Control

Sturdy insulation helps prevent warm, moist air from entering the attic space. This reduces condensation risk, which can lead to mold growth and structural damage over time.

Upkeep of Attic Door Insulation

Regular maintenance helps your attic door insulation remain as effective as possible. Follow these steps for best results:

• Inspect the insulation annually for signs of wear or damage
• Check weather stripping and replace it if worn or compressed
• Check that the door still closes properly and creates a tight seal
• Recaulk any gaps that may have developed over time

Upkeep for your attic door insulation doesn’t require significant effort but can have substantial benefits. Regular checks and small adjustments can keep your insulation at peak performance for ongoing energy savings and home comfort.

Common Mistakes To Avoid When Insulating Attic Doors

Be aware of these pitfalls when insulating your attic door:

• Compressing fiberglass insulation, which reduces its effectiveness.
• Failing to create an airtight seal around the door.
• Neglecting to insulate the door frame in addition to the door itself.
• Using inadequate insulation materials for your climate.
• Blocking attic ventilation with insulation.

Thoughtful planning and execution lead to more effective insulation and lasting results, saving you time and money in the long haul.

Our Conclusion

Attic door insulation is a critical component of a home’s energy efficiency strategy. Homeowners can see significant energy savings, improved comfort, and protect their homes from moisture-related issues by insulating this often-overlooked area.

Whether you choose a DIY approach or go for a professional solution, the key is to create a well-sealed, properly insulated barrier. Regular maintenance and attention to detail will keep your attic door insulation working effectively for years.
