Deck railings are an essential safety feature, but over time they can sag or become wobbly. This is particularly common with long handrails on decks and porches, which tend to sag in the middle due to added weight over time. Installing a deck railing brace is one solution to reinforce and stabilize your railing system. In our guide, we’ll walk you through the process of installing a deck railing brace, explore alternative methods, and provide tips for maintaining your deck’s safety.
Types of Deck Railing Braces
There are several types of deck railing braces, each with its own advantages. Let’s explore three common options—wood prop blocks, metal brackets, and cable systems.
- Wood prop blocks: These blocks are typically made from pressure-treated cedar or redwood 2×6 lumber, which is resistant to rot and weathering. They are easy to install, and you can customize them to fit the exact dimensions of your deck.
- Metal brackets: Typically made from galvanized steel or aluminum, metal brackets provide a more modern and sleek option for reinforcing deck railings. They come in various designs, and you can also choose powder-coated to match your deck’s color scheme.
- Cable systems: Cable systems offer a minimalist approach to deck railing bracing. These systems use tensioned cables to provide support while maintaining an open view. Cable braces are particularly popular in contemporary deck designs, are durable, and have low maintenance requirements.
Tools and Materials Needed for Deck-Railing Brace Installation
Before you begin installing a deck railing brace, gather all the necessary tools and materials.
- Measuring tape
- Pencil
- Saw (circular or hand saw)
- Drill with appropriate bits
- Screwdriver
- Level
- Pressure-treated 2×6 lumber (for wood prop blocks)
- Exterior-grade screws or nails
- 2×4 lumber (for lever and fulcrum)
- Sandpaper
- Wood preservative or exterior paint (optional)
Step-By-Step Guide To Installing a Wood Prop Block
Installing a wood prop block is a straightforward process that can improve the stability of your deck railing. Follow these steps for proper installation.
Step 1: Measure the Distance
Start by measuring the distance between the decking and the underside of the railing at one of the posts. This measurement will determine the length of your prop block. Take your time to ensure accuracy and a snug fit.
Step 2: Cut the Block
Using your measurement, cut the 2×6 pressure-treated lumber to the appropriate length. Make sure your cuts are straight and clean for a professional finish. Sand any rough edges to prevent splinters.
Step 3: Raise the Railing
To install the prop block, you’ll need to raise the sagging portion of the railing slightly. Use a couple of 2x4s as a lever and fulcrum to gently lift the railing. This technique allows you to slide the prop block into position without putting too much stress on the railing structure.

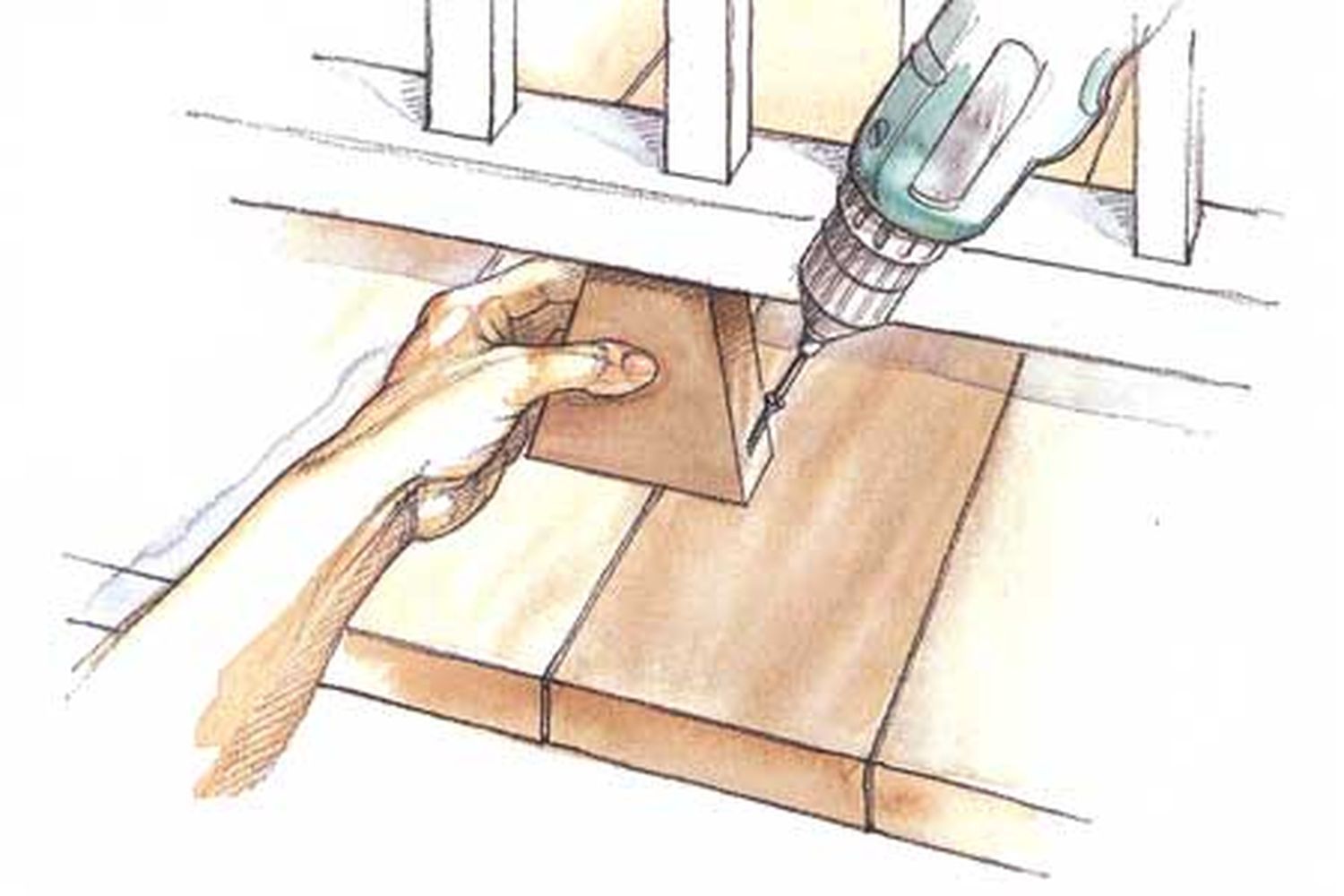

Step 4: Secure the Block
Once the prop block is in position, remove the lever and fulcrum. Use exterior-grade screws or nails to secure the block to both the decking and the underside of the railing. Ensure the block is plumb and level before the final attachment. For added protection, you may want to apply a wood preservative or exterior paint to the block.
Alternative Methods for Reinforcing Deck Railings
While wood prop blocks are an effective solution, there are other methods to reinforce deck railings. These alternatives can provide additional support and may be more suitable for certain deck designs.
Post-To-Joist Connections
Strengthening the connection between railing posts and deck joists can improve overall stability. This method involves using specialized hardware or additional blocking to create a more secure attachment point. By reinforcing this connection, you can reduce wobbling and increase the railing’s resistance to lateral forces.
Diagonal Bracing
Diagonal bracing involves installing angled supports between the railing posts and the deck frame. This technique distributes force more evenly and is particularly effective for taller railings or those in high-wind areas. Diagonal braces are typically made from wood or metal and installed at a 45-degree angle for optimal support.
Safety Considerations for Deck Railings
Make sure your deck railings meet local building codes and safety standards to help prevent accidents and maintain the value of your property.
Building codes for deck railings vary by location but generally require a minimum height of 36 inches for residential decks. Some areas may require 42 inches for decks more than 30 inches off the ground. Additionally, railings must be able to withstand a certain amount of force without failing. Check with your local building department for specific requirements in your area.
Deck railings should also be able to withstand a minimum horizontal force of 200 pounds applied at any point along the top. This ensures the railing can support the weight of people leaning against it or grabbing it for support.
Common Deck Railing Issues
Even with proper bracing, your deck railing may develop issues over time. Here are some common problems and how to address them.
Addressing Wobbling Posts
If your railing posts are wobbling, the issue may be with the connection to the deck frame. Check for loose bolts or screws and tighten as necessary. If the problem persists, you may need to reinforce the post-to-joist connection with additional hardware or blocking.
Fixing Loose Connections
Loose connections between railing components can compromise safety and stability. Regularly check and tighten all fasteners, including those on balusters and top rails. For wood components, be careful not to over-tighten, as this can strip the wood or cause splitting. If screw holes become enlarged, consider using a larger screw or filling the hole with a wood filler before re-fastening.
Our Conclusion
Weather exposure, regular use, and the weight of people leaning on railings can cause them to sag or become unstable. Installing a deck railing brace is one way to reinforce and stabilize your deck’s safety features, but there are alternative solutions as well. If you’re unsure about any aspect of deck railing reinforcement, consult with a professional to ensure your deck meets all safety standards.
