Electrical outlets, which are also known as receptacles, are essential components of any home’s electrical system. Outlets help to power appliances and electronics with complex systems that feature many moving parts. Read our guide below to better understand the inner workings of these everyday features so that you can more successfully identify potential issues in the future.
Anatomy of an Electrical Outlet
Electrical outlets contain several complex components that work together to deliver power to your home safely. Read more about these smaller parts below.

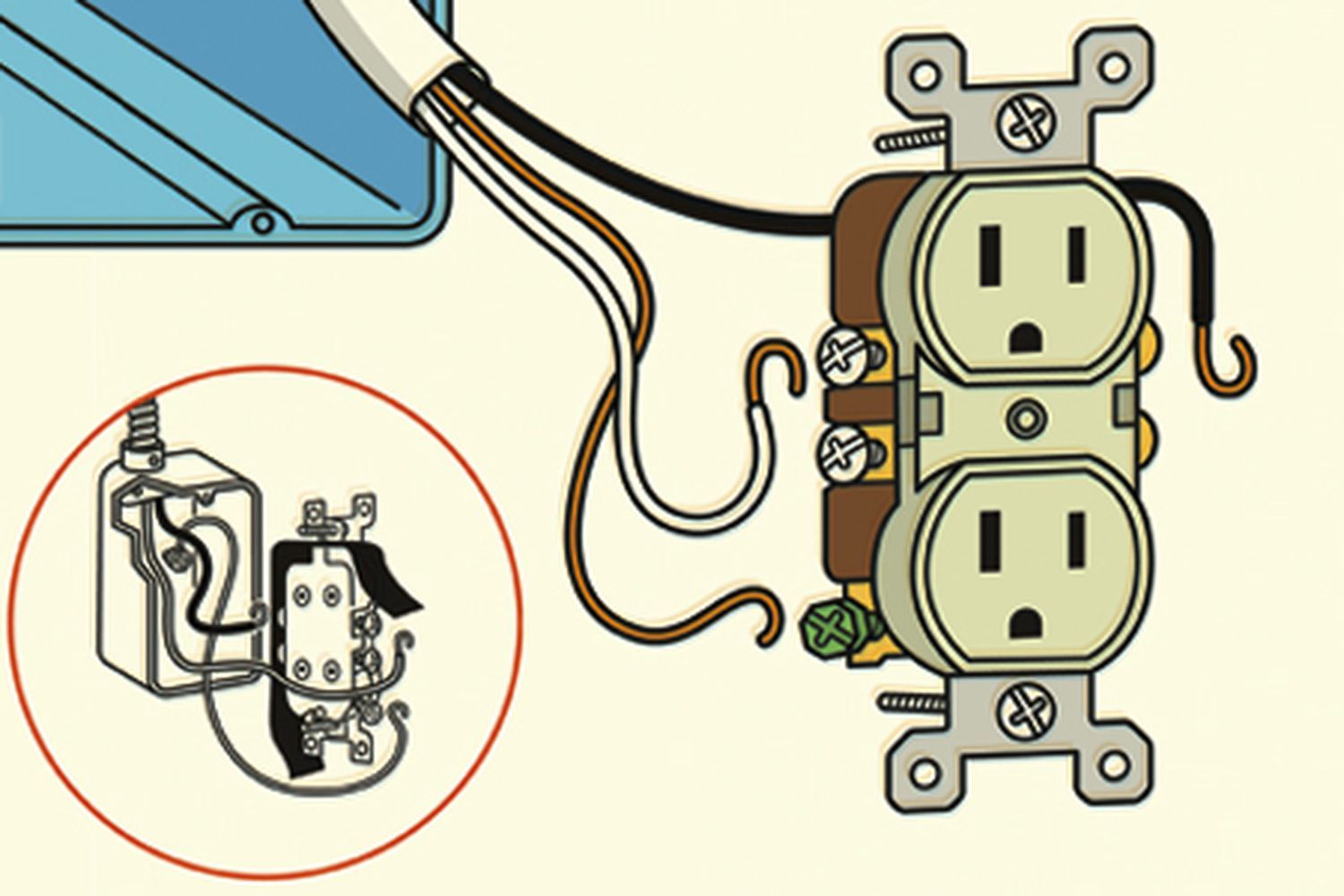

Key Components of a Receptacle
The main body of an electrical outlet, which is known as the receptacle, features the components below.
- Face plate: This is the visible outer portion of the outlet that includes slots for plug prongs.
- Grounding screw: This screw connects to the bare copper grounding wire, and helps to prevent electric shocks.
- Mounting strap: This metal piece secures the outlet to the electrical box in the wall.
- Nonmetallic cable: This cable contains the hot, neutral, and ground wires that connect to the circuit breaker panel. It’s also known as Romex.
- Terminal screws: These are the connection points for the electrical wires. There are usually silver screws for the neutral wire, brass screws for the hot wire, and a green screw for the ground wire.
You should replace any part of the outlet’s face that’s broken or doesn’t grip prongs firmly. Make sure the amp rating embossed on the face of the receptacle doesn’t exceed the amp rating that’s printed on the cable.
The Role of Contact Openings
Contact openings are the slots on the face of the outlet into which you insert the prongs of a plug. Read about why these are important below.
- Polarization: The slightly larger neutral slot makes sure that you can only insert polarized plugs one way. This maintains the correct polarity so that you can safely use appliances.
- Safety: The specific configuration of these openings helps to prevent improper connections that can lead to short circuits or electric shocks.
- Shape differentiation: The different shapes keep the plug prongs connected to the correct corresponding hot, neutral, and grounding wires.
Types of Electrical Outlets
There are several types of outlets that serve different purposes. Read about each below.
Standard Outlets
Standard outlets, which are also known as duplex receptacles, are the most basic and common types of electrical outlets. They feature a pair of 3-prong receptacles and are rated for 15 or 20 amps. Internally, they contain the features below.
- Ground terminal: This provides a safe path for excess current in case of a fault. It connects to the green screw.
- Hot terminal: This carries the electrical current from the power source and connects to the brass screw.
- Neutral terminal: This completes the circuit by returning current to the source and connects to the silver screw.
GFCI Outlets
Ground Fault Circuit Interrupter (GFCI) outlets protect against electric shock in wet areas such as kitchens, bathrooms, and outdoor spaces. GFCI outlets include the following features:
- Sensing mechanism: This detects imbalances between the hot and neutral currents, which may indicate a ground fault.
- Test and reset buttons: These allow users to verify that the GFCI protection is functioning correctly.
- Trip mechanism: This quickly cuts off power when it detects a ground fault to prevent electric shock.
AFCI Outlets
Arc Fault Circuit Interrupter (AFCI) outlets protect against electrical fires that arcing faults cause. Their internal structure includes the following features:
- Electronic circuit board: This monitors the electrical current for signs of dangerous arcing.
- Microprocessor: This analyzes existing patterns to distinguish between normal arcing and potentially hazardous arcing.
- Trip mechanism: This cuts off power when it detects any dangerous conditions.
AFCI outlets are often required in bedrooms and living areas in which electrical fires pose a significant risk.
USB Outlets: Modern Convenience
USB outlets have become more popular in modern homes. These outlets combine standard receptacles with built-in USB ports, which allows homeowners to charge devices directly without the need for adapters.
The Importance of Proper Wiring for Electrical Outlets
Proper wiring is an important part of keeping your household safe. Incorrect connections can lead to short circuits, electric shocks, or even fires.
Connecting Wires to Terminal Screws
You must correctly connect wires to their corresponding terminal screws whenever you’re installing or replacing an outlet. Consider the tips below.
- Avoid backstabbing: Some outlets feature push-in terminals on the back, but these “backstabbers” are not as secure as screw terminals. You should avoid them.
- Secure connections: Make sure the wire winds in a clockwise direction around the screw and that it’s tight. Loose connections can cause overheating and electrical problems.
- Wire color coding: The white wire (neutral) always connects to one of the silver screws, while the black wire (hot) connects to one of the brass screws.
Grounding and Safety Measures
Keep your household safe by making sure that you correctly ground your outlets. Consider the tips below.
- GFCI protection: GFCI outlets can provide protection against ground faults even without a physical ground connection.
- Grounding in older homes: The receptacle may be grounded to the box in older homes with steel outlet boxes and armored cable. The cable’s metal sheath then grounds these.
- Ground wire connection: The bare copper ground wire should connect to the green grounding screw on the outlet.
The Role of Electrical Boxes
Electrical boxes protect the connections in your outlets and keep you safe. Make sure you can easily access your box and that you’ve correctly mounted it.
Common Issues With Electrical Outlets
Electrical outlets can develop certain issues over time. Recognizing the signs of a faulty outlet and knowing how to troubleshoot common issues can help you stay safe in your home.
Signs of a Faulty Outlet
Be on the lookout for the signs of a faulty outlet below.
- Crackling or buzzing sounds
- Discoloration or scorch marks around the outlet
- Loose or wobbly receptacles
- Outlets that don’t work or work intermittently
- Plugs that fall out easily
- Warm or hot outlets
Address any issue you notice immediately to prevent potential hazards.
Troubleshooting Outlet Problems
Consider the tips below if you encounter an outlet problem:
- Check the circuit breaker: A tripped breaker may be the cause of a nonfunctioning outlet.
- Inspect for visible damage: Look for signs of wear, cracks, or burn marks.
- Test with a different device: This can help determine if there’s a problem with the outlet or the appliance.
- Use a voltage tester: This determines whether the outlet receives power.
If you’re unsure about the cause of the problem or how to fix it, consult a licensed electrician.
Preventative Measures
Regularly check your electrical outlet for potential issues. Tighten any loose screws, replace damaged face plates, and inspect connection points.
How To Replace an Electrical Outlet
Follow the guide below if you’ve determined that an outlet needs replacement and you’re skilled at electrical work. Make sure your workplace is safe, and consult a professional if you’re not sure about how to proceed.
Tools and Materials Needed
Gather the tools below before you begin.
- Electrical tape
- Flathead and Phillips screwdrivers
- Needle-nose pliers
- New outlet that matches the amperage of your previous system
- Voltage tester
- Wire strippers
Safety Precautions
Follow the steps below to keep yourself safe while working with electricity:
- Turn off power at the breaker box before you begin work.
- Use a voltage tester to confirm that the power is off.
- Wear insulated gloves and use tools that feature insulated handles.
- Work in a well-lit area.
Removal and Installation Process
Follow the steps below to replace an outlet:
- Remove the faceplate and unscrew the outlet from the electrical box.
- Carefully pull out the outlet and make a note of how the wires connect.
- Disconnect the wires from the old outlet.
- Connect the wires to the new outlet, and make sure white connects to silver, black connects to brass, and ground connects to green.
- Gently push the new outlet back into the box and secure it with screws.
- Reattach the faceplate and turn the power back on.
- Test the new outlet to make sure it’s working correctly.
Maintaining Your Electrical Outlets
Take care of your electrical outlet and perform regular maintenance tasks to prevent common issues and keep your home safe.
Regular Inspection Tips
Perform the checks below periodically.
- Check for warmth: Outlets should not be warm to the touch during normal use.
- GFCI testing: Use the test and reset buttons every month to make sure the system functions properly.
- Plug retention test: Make sure plugs fit snugly and don’t fall out easily.
- Visual inspection: Look for signs of damage, discoloration, or loose fit.
When To Call a Professional
Homeowners can perform some outlet maintenance, but call a professional if you’re dealing with any of the issues below.
- If there are persistent issues after you’re done troubleshooting
- If there are signs of electrical arcing or burning
- If there’s any work that involves the main electrical panel
- If you have to upgrade to GFCI or AFCI outlets in required areas
- If you’re not sure about a particular aspect of electrical work
