Major power outages are easy to understand: Your house loses electrical power when a storm takes down the power lines or a utility crew needs to make repairs in your area.
But what about the many smaller power outages that can occur in your house, such as when an appliance or power tool stops working or when the recessed lights in a room suddenly go out? To solve the mystery behind these mini-outages, look at your home’s main electrical service panel or breaker box—the distribution center for all the electricity you consume. Understanding how your electrical panel works can help you troubleshoot issues, perform basic maintenance, and know when to call a professional, all of which will help preserve your home’s safety and functionality.

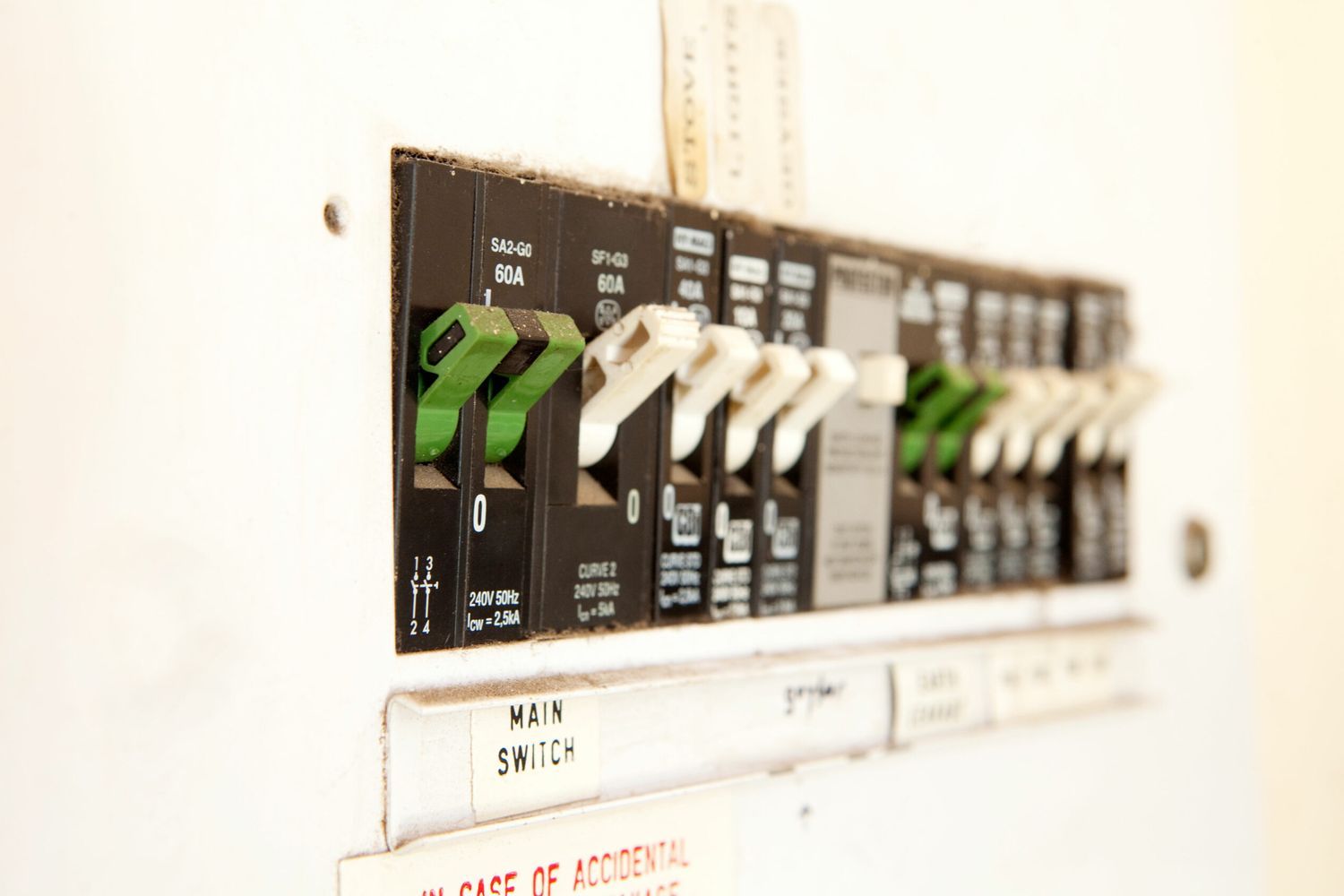

Electrical Service Panel Anatomy: A Big Box of Circuit Breakers
Your home’s main electrical service panel was once called a fuse box because it contained all the main fuses for different electrical circuits throughout the house. Today, however, a service panel is often called a “breaker box” because it’s full of circuit breakers, which are safer and more convenient than fuses.
The main service panel is typically located in a home’s basement or utility room. Some homes also have a subpanel—a smaller version of the main panel—to control electrical circuits in a garage, workshop, or other outbuilding. A service panel is easy to spot. It’s a gray steel box with a hinged door, securely attached to the wall at around shoulder height. Inside the box, you’ll find two rows of switches. These are the circuit breakers you can toggle on and off to control the electricity you use in different parts of your house.
Above the circuit breakers, you’ll find a larger main switch—sometimes known as the service disconnect—that controls all the power available to the house from your electric utility. Behind the cover plate surrounding all the panel’s switches, you’ll find three large wires entering the box from the main power line and many smaller wires that connect individual circuit breakers to electrical cables that run to different circuits throughout your house.
Main Components of an Electrical Panel
The main components of an electrical panel include the following:
- Bus bars: Metal bars that distribute electricity to circuit breakers
- Circuit breakers: Smaller switches that control individual circuits
- Ground bar: Connects grounding wires for safety
- Main breaker: A large switch controlling all power to your home
- Neutral bar: Collects neutral wires from circuits
You can use the main breaker or service disconnect switch at the top of the panel to cut off all power to your home when necessary.
The Role of Circuit Breakers
Circuit breakers are the workhorses of your electrical panel. These switches serve two primary functions as follows:
- Automatic protection: Breakers trip to cut power and prevent overheating and potential fire hazards when they detect overloads or faults, such as when a circuit draws more current than it’s designed to handle.
- Manual control: You can turn off power to specific circuits for maintenance or repairs.
Know Your Circuit Breakers
You’ll find a number next to each circuit breaker (stamped into the steel cover plate) that enables you to match individual breakers to specific circuits. Once you’ve identified what each circuit controls, you can fill in the lined sheet of paper glued to the back of the panel door with clear labels. Typical circuit breaker labels might include: “kitchen outlets,” “living room lights,” or “clothes dryer,” for example. An average-sized house will likely have at least several lighting circuits, receptacle (outlet) circuits, and circuits that control major appliances like the furnace, clothes dryer, or water heater.
A circuit breaker is an electronic switch that lets you manually deactivate a circuit at the service panel. You’d need to do this if you were doing electrical wiring work that might put you in contact with live wires, such as replacing a ceiling fan or installing a dimmer switch. Circuit breakers receive classifications based on their type and amperage rating, which specifies how much current the breaker can handle before shutting off.
Regardless of classification, all circuit breakers are designed to turn off automatically when the electricity flowing through the circuit exceeds the breaker’s power or amperage rating. This can happen when too many devices are running on one circuit, like if you use a heavy-duty vacuum in the garage while someone else uses a circular saw. By shutting down in response to high amperage draw, the breaker protects against overloads, short circuits, and overheated wiring that can cause an electrical fire and damage electrical equipment.
Standard Circuit Breakers
Standard circuit breakers are the most common breaker type found in residential panels. These breakers have a typical amperage rating of 15 or 20 amps for general household circuits, with larger ratings for major appliances.
GFCI Circuit Breakers
Ground Fault Circuit Interrupter (GFCI) breakers provide extra protection against electric shock. They monitor the balance of current between the hot and neutral wires and trip if they detect even a small imbalance. Such imbalances could indicate a ground fault, which is when electricity follows an unintentional path to a grounded surface. GFCI protection is required in areas where water may be present, such as the following:
- Bathrooms
- Garages
- Kitchens
- Outdoor outlets
AFCI Circuit Breakers
Arc Fault Circuit Interrupter (AFCI) breakers detect electrical arcing, which is when a current jumps a space within a circuit or between conductors. Arcing can occur due to damaged wires or loose connections and can cause buzzing outlets, flickering lights, and tripped circuit breakers. These breakers help prevent electrical fires by shutting off power when they sense dangerous arcing conditions. AFCI protection is now required in many areas of new and renovated homes, including the following:
- Bedrooms
- Dining rooms
- Kitchens
- Living rooms
Additional Safety Features
Circuit breakers do more than protect a home and its inhabitants from electrical hazards. They can also provide valuable diagnostic information. If a standard circuit breaker trips, one or more devices might be drawing too much power from the circuit. If a GFCI breaker controlling kitchen outlets keeps tripping, it indicates a current leakage somewhere in the circuit that you’ll need to locate and repair. In rare cases, this can also indicate a faulty circuit breaker. When an AFCI breaker trips, it can be due to arcing caused by loose or improper wiring.
Decoding Your Electrical Panel’s Layout
Understanding how to read your electrical panel can help you quickly identify and address issues when they arise.
Reading Circuit Labels
Each circuit breaker in your panel should be labeled to indicate which area or appliance it controls. If your panel isn’t labeled or the labels are outdated, consider creating a new, accurate labeling system. This can save time and frustration when you need to shut off power to a specific area.
Identifying Amperage Ratings
Circuit breakers are rated based on the amount of current they can safely handle. You’ll find these ratings stamped on the switch of each breaker. Common residential amperage ratings include the following:
- 15 amps: Lighting circuits and general-use outlets
- 20 amps: Kitchen and laundry room outlets
- 30 amps: Large appliances like electric dryers
- 50 amps: Electric ranges or large air conditioners
Knowing these ratings can help you understand which circuits can handle higher-powered devices and when you might need to upgrade a circuit for increased capacity.
Common Electrical Panel Issues and Troubleshooting
Even well-maintained electrical panels can experience issues from time to time. Recognizing common problems can help you determine when to attempt a simple fix and when to call in a professional.
Frequent Circuit Tripping
If a circuit breaker trips repeatedly, it’s often a sign that the circuit is overloaded. This can happen if you use too many high-powered devices on the same circuit. Follow these steps to troubleshoot:
- Unplug some devices from the affected circuit.
- Reset the breaker by switching it fully off and then back on.
- If the problem persists, consider redistributing devices to other circuits or upgrading the circuit’s capacity.
If a GFCI breaker keeps tripping, it may indicate a ground fault somewhere in the circuit. This could be due to damaged wiring or a faulty appliance and you should hire a licensed electrician to investigate.
Signs of an Outdated Panel
Older electrical panels may not be equipped to handle a modern home’s power demands. Signs that your panel may be outdated include the following:
- Burning smells or buzzing sounds from the panel
- Flickering or dimming lights
- Frequent tripping or blown fuses
- Fuses instead of circuit breakers
- Warm or discolored breakers or wires
If you notice any of these signs, hire a professional to inspect your panel as soon as possible. An outdated panel can pose serious safety risks and you may need to upgrade it.
Maintaining Your Electrical Service Panel
Regular maintenance can ensure your electrical panel functions safely and efficiently. You can perform some maintenance tasks yourself, but leave others to a professional.
Regular Inspection Tips
Perform these simple inspections periodically:
- Check for signs of moisture or rust inside the panel.
- Ensure all breakers are firmly seated and not loose.
- Look for any discoloration on breakers or wires.
- Test GFCI and AFCI breakers using their test buttons.
- Verify that all circuit labels are accurate and legible.
When To Call a Professional To Handle Your Electrical Service Panel
While DIY maintenance is important, some situations require professional attention. Contact a licensed electrician if you notice any of the following:
- A need for additional circuits or increased amperage
- Any signs of overheating, such as melted wire insulation or burn marks
- Buzzing or crackling sounds coming from the panel
- Frequent breaker tripping that persists after reducing the load
An annual professional inspection can also help catch potential issues before they become serious problems.
Safety Precautions When Working With Your Electrical Panel
Safety should always be your top priority when dealing with electricity. Even simple tasks involving your electrical panel can be dangerous if you don’t take certain precautions.
Essential Safety Gear
Before working on or around your electrical panel, ensure you have the following safety equipment:
- Flashlight
- Insulated gloves
- Rubber-soled shoes
- Safety glasses
- Voltage tester
Never work on your electrical panel if the floor around it is wet or if you’re standing in water.
Steps To Safely Turn Off Power
If you need to turn off power to your entire home, follow these steps:
- Inform all household members of the impending power shutoff.
- Locate the main breaker at the top of the panel.
- Firmly grasp the handle and quickly switch it to the “Off” position.
- Use a voltage tester to confirm that the power is off before proceeding with any work.
Remember, even with the main breaker off, the large wires connecting the utility supply to your panel are still energized. Never attempt to work on these wires yourself.
Upgrading Your Electrical Service Panel
As you equip your home with more electrical devices and appliances, an older panel may struggle to keep up with your increased power demands. Upgrading your electrical panel can improve safety and accommodate your home’s growing electrical needs.
Signs You Need an Upgrade
Consider upgrading your electrical panel if any of the following is true:
- You’re planning a major renovation or adding large appliances.
- You frequently need to use power strips or extension cords.
- Your current panel is more than 25–30 years old.
- Your home still uses a fuse box instead of circuit breakers.
- Your panel has an amp capacity of less than 100 amps (most modern homes require 200 amps).
Benefits of Modernizing Your Panel
Upgrading your electrical panel offers several advantages, including the following:
- Better energy efficiency and lower utility bills
- Improved safety features with newer breaker technology
- Increased capacity to handle modern electrical demands
- Increased home value and easier resale
- Potential reduction in homeowners insurance premiums
Always hire a licensed electrician for panel upgrades, as this work requires permits and inspections to ensure compliance with local codes.
The Lifespan of Residential Electrical Panels
Like any home component, electrical panels have a finite lifespan. Familiarizing yourself with the factors that affect your panel’s longevity can help you plan for its eventual replacement.
Factors Affecting Panel Longevity
Several factors can impact how long your electrical panel will last, such as the following:
- Environmental conditions (humidity, temperature extremes)
- Frequency of use and electrical demand
- Quality of initial installation
- Regular maintenance and inspections
- Technological advancements in electrical safety
On average, a well-maintained electrical panel can last 25–40 years. However, this can vary significantly based on the factors mentioned above.
Our Conclusion
Your home’s electrical service panel is a critical component of your electrical system, providing both convenience and safety. By understanding a panel’s functions, maintaining it properly, and hiring a professional when necessary, you can keep your home safe and your essential systems working at peak performance.
