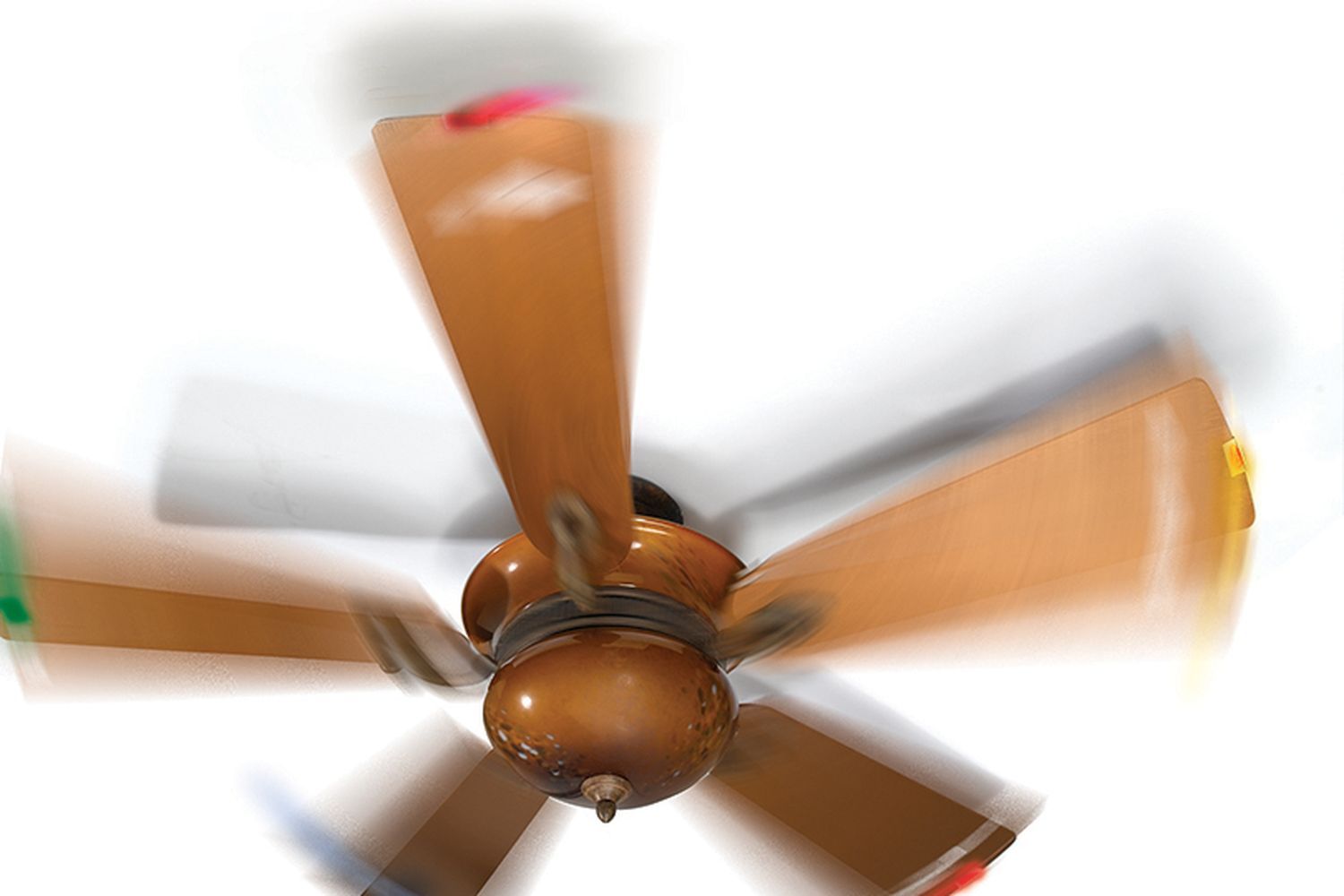

A ceiling fan with wobbling blades is not just a visual distraction. Those uneven blades can quickly wear down the motor’s bearings and bushings and cause annoying squeaks and whines. If your fan is off-kilter, below are some helpful tips to get it spinning evenly again.
What Causes a Wobbling Ceiling Fan?
Ceiling fan wobble is a common issue. Understanding the root causes of fan wobble is the first step in restoring your fan to smooth operation. Here are a few common reasons why fans get out of balance.
- Loose blade screws or brackets
- Dust and dirt accumulation on blades
- Warped or damaged blades
- Misaligned blade holders
- Bent motor shaft
- Improper installation
As you go to re-balance the fan, you’ll need to search for issues like these and address them.
Balancing a Ceiling Fan: Step-by-Step
Follow these steps to troubleshoot the issue and get a fan back on an even keel. First, you’ll need the following:
- Stepladder
- Screwdriver
- Cleaning cloth
- Ruler or yardstick
- Masking tape
These items will allow you to perform basic maintenance and initial balancing attempts. For more stubborn wobbles, you may need a balancing kit, which typically includes:
- Plastic clips
- Adhesive weights
- Detailed instructions
These kits are available at most home improvement stores.
Step 1. Turn Off and Clean the Fan
Always turn off the fan at the switch and wait for it to come to a complete stop before beginning work. Once the fan is off, use a damp cloth to clean each blade thoroughly.
Step 2. Inspect and Tighten Blade Screws
Examine each blade and its attachment to the motor housing. Use a screwdriver to tighten any loose screws on the blade brackets. Be careful not to overtighten, as this can strip the screws or damage the blades.
Step 3. Check Fan Balance
With your fan cleaned and screws tightened, you’re ready to check the fan balance.
- Place a numbered piece of masking tape on each blade so you don’t lose track of which blade is which.
- Use a ruler or yardstick to measure the distance between each blade’s leading edge and the ceiling. Keep the ruler vertical and always measure from the same spot on the ceiling, manually moving the blades to measure each one.
- If an edge is out of whack, gently bend the blade’s bracket up or down by hand.
- Run the fan to see if the problem persists.
For the best view, stand on a ladder away from the fan, at eye level with the blades. Use an object in the background (such as a doorway or window) as a reference point to see if the blades are all running at the same level. If the fan continues to wobble, proceed to step 4.
Step 4. Use a Balancing Kit
Purchase a blade-balancing kit from your local home center or the fan’s manufacturer. Take the clip provided and place it in the middle of the trailing edge of the blade you think is wobbling. As before, observe the running fan from a ladder to see how the extra weight affects it.
Turn the fan off and slide the clip out toward the end or back toward the motor. Then turn the fan on and see if there’s a change. Continue moving and testing the clip’s position on this blade or others until the wobbling stops.
Step 5. Add Weights
Using a piece of tape, temporarily secure one of the kit’s self-adhesive weights to the top of the blade’s centerline, in line with the clip.
Remove the clip and see how the fan runs. If it works as hoped, mark the blade around the weight, remove the tape, and stick the weight permanently to the blade. Do this on as many blades as necessary until the fan runs smoothly.
Tip: To identify which blade is behaving badly when the fan is spinning, dab each tip with a different-colored fluorescent paint. For easy removal, put the dab on a piece of masking tape.
How To Troubleshoot Persistent Wobbles
If basic balancing techniques don’t resolve the issue, you may need to look deeper for the cause of the wobble. Examine each blade carefully for any warping or damage:
- Remove the blades from the fan.
- Lay each blade on a flat surface to check for any curvature or twisting.
- Replace any blades that show signs of damage or warping.
If that’s not the trouble, sometimes the problem lies with the fan’s motor mount:
- Check that the mounting bracket is securely fastened to the electrical box.
- Ensure the down-rod (if present) is not bent and is properly seated in the mount.
- Verify that the canopy is snug against the ceiling.
Any looseness or misalignment in these components can cause wobbling.
