Drilling into concrete may seem intimidating, but it’s a skill you can master for home projects like mounting shelves, adding outdoor lighting, installing a channel drain, or applying stone veneer. The key to successfully working with concrete is understanding its properties and using the appropriate tools and techniques. In this guide, we share our expert advice to make your concrete drilling precise and effective.
Understanding Concrete
Concrete, a mix of cement, sand, gravel, and water, varies in hardness based on its composition and age. Newer concrete is typically softer, while older concrete hardens with time. Concrete often contains reinforcing materials like rebar, which can present more drilling challenges. Recognizing these factors will help you approach your drilling project with the right mindset and tools.
Concrete’s porosity also affects its drillability. Dense, high-strength concrete is less porous and more difficult to penetrate. Understanding whether your concrete slab includes reinforcement materials and its porosity helps you select the right drill bit, speed, and pressure to apply.
Essential Tools for Drilling Concrete
The two main types of drills used for concrete are hammer drills and rotary hammers. Each has its strengths and is suited for different projects.
Hammer Drills
A hammer drill is primarily for occasional drilling and smaller holes—think plastic anchors and screws (say, for shutters or running coaxial cable) or #10 concrete screws.
- Combines rotational motion with rapid hammering
- More affordable and versatile than rotary hammers
- Ideal for holes up to half an inch in concrete, brick, or block
- Suitable for occasional use and smaller projects
- Can be noisy and struggle with harder concrete or larger holes
- Uses carbide-tipped masonry bits with a spiral flute design

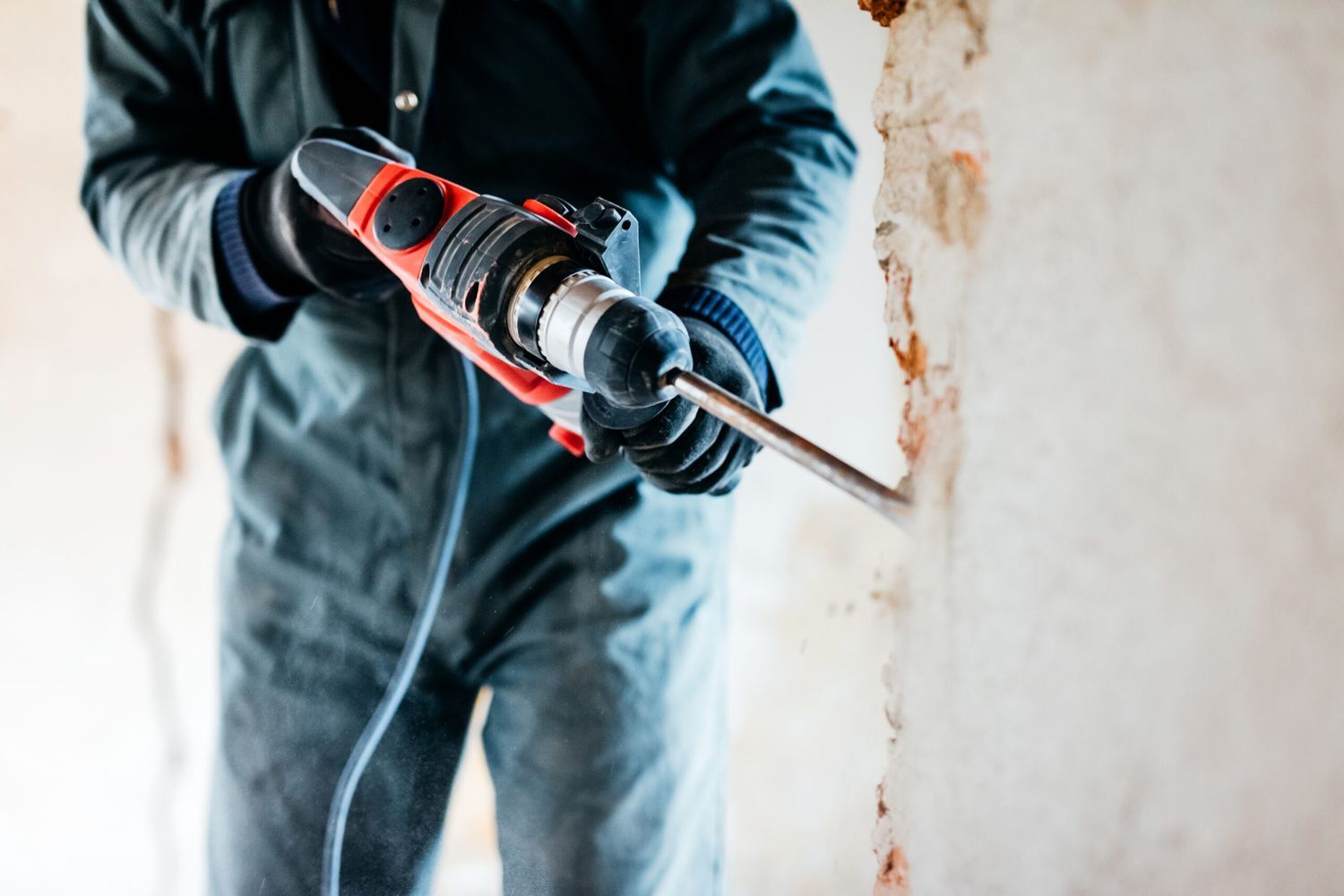

Rotary Hammers
A rotary hammer is what a hammer drill wants to be when it grows up. Once you use one, you’ll probably want to leave your hammer drill in the rearview mirror. If you anticipate working with concrete regularly or need to drill larger or deeper holes, investing in a rotary hammer can save you time and effort.
For 99% of around-the-house drilling, a rotary hammer in the 5-pound range with a three-quarter-inch bit holder will do just about anything you’ll need to do, from demo to concrete drilling.
- More powerful than a hammer drill
- Designed specifically for masonry and concrete
- Operates like a small jackhammer that rotates
- Quieter and more comfortable for extended use
- Excels at drilling larger holes and harder or older concrete
- Preferred for professionals and frequent concrete work
- Uses SDS (Slotted Drive System) bits for better power transfer
Preparing for the Drilling Process
Safety should always be your top priority when working with power tools and concrete. We always advise following these safety guidelines:
- Wear safety glasses
- Use hearing protection, as concrete drilling can be very loud
- Wear a dust mask to avoid inhaling concrete dust
- Put on work gloves to protect your hands
- Check for proper ventilation in your work area
Marking Your Drill Points
Accurately mark your drill points for precise hole placement. Use these tips:
- Use a pencil or marker to indicate where you need to drill clearly
- For mounting brackets or shelves, use the item as a template to mark hole locations
- When drilling into brick or block, aim for the mortar joints when possible
- Use a center punch to create a small indentation to prevent the drill bit from wandering
Step-by-Step Guide To Drilling Concrete
Now that you’re prepared, let’s walk through drilling into concrete.
Setting Up Your Workspace
Clear the area around your drilling location and check for a stable footing. If working on a ladder or elevated surface, make sure it’s secure. Gather all your tools and materials, including your drill, appropriate bits, and any anchors or screws you’ll be using. A drop cloth or tarp to catch dust and debris helps simplify cleanup after drilling. If you’re drilling indoors, we recommend covering nearby furniture and surfaces to protect them from dust and potential damage.
Starting the Drill
Begin drilling slowly to create a pilot hole. This step helps prevent the bit from wandering and keeps it accurate. Once you’ve established a small depression, gradually increase the drill speed. Let the tool do the work—don’t force it.
Using a slow and steady approach initially can also help you gauge the hardness of the concrete, allowing you to adjust pressure and speed as necessary. Listen to the sound of the drill; a consistent noise suggests you are maintaining even pressure, while choppy sounds may indicate the need for adjustments.
Maintaining Steady Pressure
Apply firm, consistent pressure as you drill. Avoid pressing too hard, as this can overheat the bit and damage the concrete. Periodically pull the bit out to clear debris from the hole, which helps prevent overheating and improves drilling efficiency.
Continually monitor the drill bit’s temperature. If it becomes too hot to touch, you should stop and let it cool down. This precaution extends the life of your drill bits and provides a smoother drilling process, enhancing both safety and efficiency.
Tips for Drilling Different Types of Concrete
Different concrete structures may require slightly different approaches. Here are some tips for common scenarios.
Drilling Into Solid Concrete
Due to its density, solid concrete can be challenging to work with. Use a high-quality carbide-tipped bit and start with a smaller pilot hole before moving to your desired size. Take breaks to prevent overheating, and use a vacuum or compressed air to clean dust from the hole.
Using a pilot hole technique for particularly hard concrete minimizes the risk of cracking or damaging the structure. Employing a rhythmic drilling pattern, where you periodically pause and clear the dust, speeds up the process and reduces friction.
Drilling Into Cinder Block
Cinder block is generally easier to drill than solid concrete. When possible, aim for the mortar joints, as they’re softer. If you have to drill into the block, be cautious near the edges to avoid cracking.
We recommend lighter pressure and slower drill speed to maintain control and reduce the risk of damaging the block. Reinforcing the back side of the block with a piece of scrap wood can provide extra support and stability during drilling.
Drilling Into Concrete With Rebar
Rebar can be tricky. Marking the location of the rebar with a metal detector before you drill can help you avoid the rebar. If you hit rebar, stop drilling and consider relocating your hole if possible. If you must drill through the rebar, switch to a specialized rebar-cutting bit. They’re designed to handle concrete and metal.
Common Challenges and How To Overcome Them
Even with the right tools and techniques, you may encounter some challenges when drilling concrete. Here’s how to address common issues.
Dealing With Dust
Concrete drilling generates a lot of dust. Not only can this be messy, but it’s potentially harmful if inhaled. Use a dust collection attachment on your drill or have a helper hold a vacuum nozzle near the drilling site. Alternatively, you can create a “dust catcher” by folding a piece of paper into a funnel shape and taping it below the drill site.
Using a damp cloth to wipe down surrounding surfaces periodically helps keep the dust under control and prevents it from spreading through your workspace. Consider renting a professional-grade dust management system for large projects to maintain a cleaner and healthier environment.
Handling Tool Vibration
The vibration from hammer drills and rotary hammers can be tiring and potentially harmful with prolonged use. To reduce fatigue and potential injury, take regular breaks, wear anti-vibration gloves, and maintain a relaxed grip on the tool. Anti-vibration handles can absorb some shocks and reduce strain on your hands and arms. Maintaining correct posture while drilling can prevent long-term stress injuries.
Avoiding Cracks in the Concrete
Start with a smaller bit, which prevents cracking the concrete, and gradually work up to your desired hole size. Avoid drilling too close to edges or corners, and be especially careful when working with thinner concrete slabs or walls.
Employing a controlled drilling speed and avoiding excessive pressure provides precision and minimizes the risk of cracks. For added caution, reinforcing the area around the drill site with a temporary wooden frame can provide stability and reduce the chance of fractures.
Best Practices for Concrete Drilling
To get the best results and prolong the life of your tools, follow these best practices:
Proper Bit Maintenance
Keep your drill bits clean and sharp. After use, clean them thoroughly and store them in a dry place. Sharpen or replace bits when they become dull to maintain drilling efficiency and prevent damage to your drill.
Regularly inspect bits for signs of wear or damage, such as chipping or warping, and address these issues promptly. Lubricating bits with a light machine oil can prevent rust and extend their lifespan.
Cooling Techniques
Overheating can damage both your drill bit and the concrete. You can use water as a coolant by periodically dipping the bit or having a helper spray a small amount of water on the drilling site. For deeper holes, consider using a wet-drilling system.
Using cooling gels or sprays specifically designed for masonry drilling can also be effective. These products reduce friction and heat buildup, allowing for smoother drilling and protecting the bit and the concrete.
When To Replace Your Drill Bit
Regular bit replacement guarantees clean, accurate holes and protects your drill from strain. Replace your drill bit when you notice these issues:
- Decreased drilling speed or efficiency
- Visible wear or damage to the carbide tip
- Excessive heat generation during drilling
- Difficulty maintaining a straight hole
