Wood columns are elegant architectural elements that can add charm and character to interior and exterior spaces. If you found a beautiful old wooden column at the salvage center, it could be a perfect addition to your house, even if it’s a bit too tall. Just trim down the column’s shaft as described below. This comprehensive guide will walk you through the process of cutting wood columns, from understanding the basics to mastering a professional finish.
What Are Wood Columns?
Wood columns are vertical structural elements that serve functional and decorative purposes in architecture. There are different types of wood columns, each with unique characteristics:
- Composite columns: These columns combine wood with other materials for increased durability and weather resistance.
- Hollow columns: These lightweight columns are often used for decorative purposes.
- Solid wood columns: Created from a single piece of wood, they’re strong but can be prone to warping.
- Stave columns: Constructed from multiple pieces of wood glued together, these columns offer better stability.
Wood Posts vs. Wood Columns
While often used interchangeably, wood posts and wood columns have distinct differences, including these three:
- Purpose: Posts are primarily structural, while columns can be both structural and decorative, featuring capitals, bases, and other elements.
- Shape: Posts are typically square or rectangular, whereas columns are usually round or fluted.
- Installation: Columns can be more complex to install compared to posts due to their shape and decorative features.
Tools and Materials Needed To Cut Wood Columns
To successfully cut wood columns, you’ll need the right tools:
- Band clamp
- Chalk line
- Drill with a 1/2-inch bit
- Jigsaw with a wood-cutting blade
- Pencil or marker
- Sandpaper (various grits)
- Tape measure
You should also have this safety gear on hand:
- Dust mask
- Ear protection
- Safety glasses
- Sturdy work boots
- Work gloves
Step-by-Step Process for Cutting Wood Columns
Follow these steps carefully for the best results for your wood column.

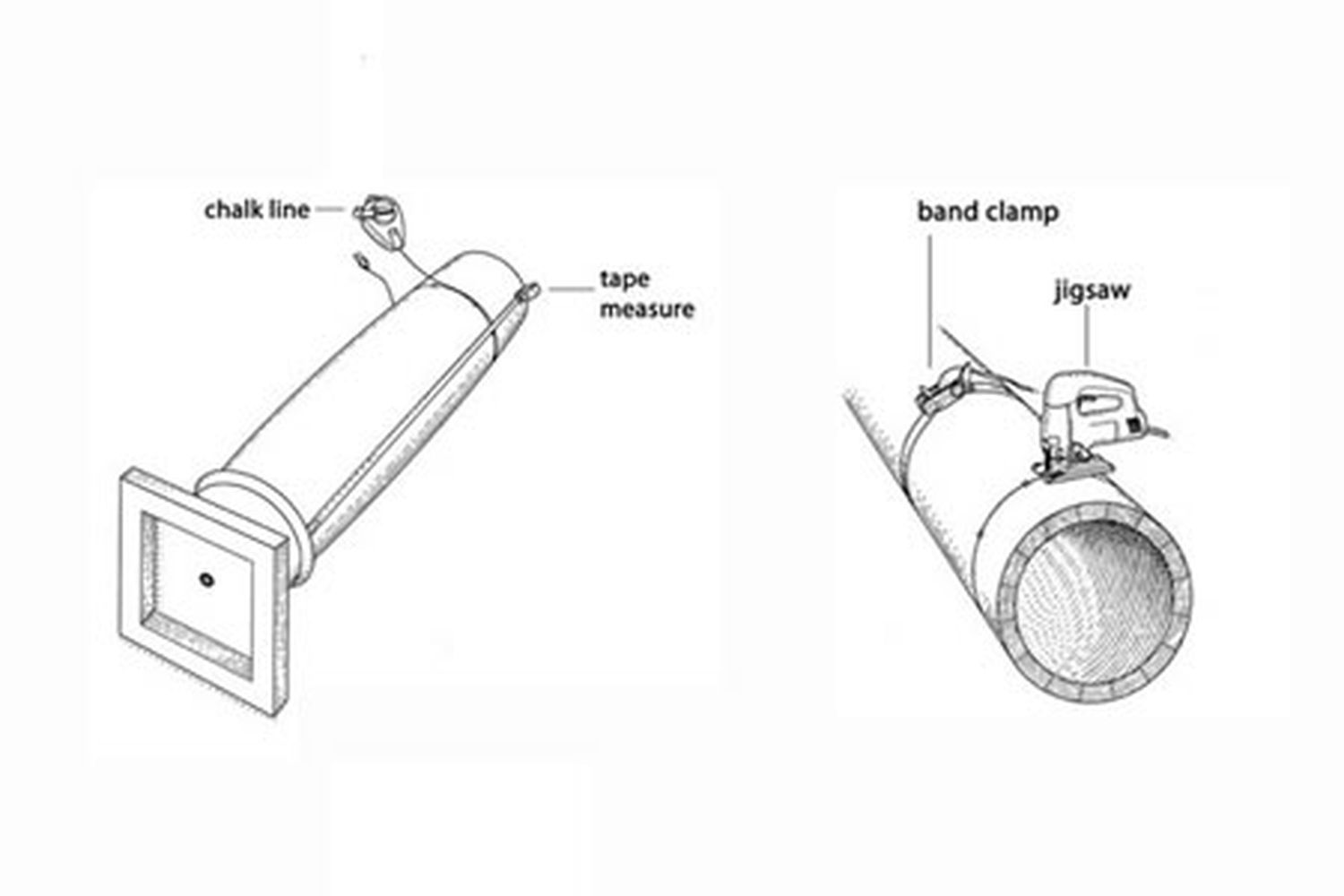

1. Measure and Mark
Follow these steps to measure and mark your column:
- Determine the desired height of your column.
- Use a tape measure to mark the cutting point at the top of the shaft.
- Make additional marks at six equally spaced points around the column’s circumference.
- Connect these marks using a chalk line to create a clear-cut line.
2. Secure the Column
Before cutting, secure the column to prevent movement:
- Place the column on a stable work surface.
- Use sawhorses or a workbench to support the column’s weight.
- Strap a band clamp around the column a few inches above the cutline to keep the staves from separating during cutting.
3. Drill the Starter Hole
Next, drill a starter hole using the cut line made in step one. It will allow you to insert the jigsaw blade and cut without damaging the column. Choose a spot on the waste side of the cutline, and use your drill with a 1/2-inch bit to create the hole.
4. Set Up the Jigsaw
Choose a wood-cutting blade appropriate for your column’s material and thickness. Adjust the angle of the saw’s shoe to about four or five degrees, tilting the blade slightly toward the inside of the column. This angle will create a back bevel, providing a tight, gap-free fit against the base.
5. Execute the Cut
Now, it’s time to start cutting:
- Insert the jigsaw blade into the starter hole.
- Begin cutting along the chalk line, maintaining firm pressure on the front of the saw and the side of the column closest to the clamp.
- When cutting becomes awkward, stop the saw and rotate the column as needed.
- Continue cutting until you’ve completed the entire circumference of the column.
6. Test, Sand, and Finish
For a seamless connection between the column and its base, follow these final steps:
- Lightly sand the cut edges, using progressively finer grits of sandpaper for a smooth finish.
- Test the fit against the base and make any needed adjustments.
- Use wood filler to address any small imperfections in the cut.
- Apply a wood sealer and weather-resistant finish to protect against moisture and decay.
- Paint or stain the column to match your desired design and to provide additional protection.
7. Perform Ongoing Maintenance
Once your wood column is finished and installed, inspect it regularly for signs of wear, damage, or moisture intrusion. Clean the column periodically with a mild soap solution to prevent dirt buildup.
Common Challenges When Cutting Wood Columns
Even experienced woodworkers can face challenges when cutting wood columns. One common challenge is an uneven surface. If your column has an uneven surface, use a level to identify high spots and sand down these areas before marking and cutting. You can also use a planer for significant uneven portions.
Another common issue woodworkers run into is keeping the column staves from separating. To prevent this, apply wood glue to any visible seams and then use a band clamp above the cutline. Allow the glue to dry completely before cutting.
Wood Column Design Tips
If you’re cutting and installing wood columns to include in your home, you’ll need to choose the right thickness and space them properly. If you’re unsure about the required thickness or spacing for your project, especially if the column will be load-bearing, work with a professional to assist with the design.
Determining the Ideal Thickness
The ideal thickness for wooden columns depends on several factors:
- Architectural style: Different styles may call for varying column proportions.
- Height: Taller columns generally require greater thickness for stability. The diameter of a column should be about 1/8 to 1/10 of its height for proper proportions.
- Load-bearing requirements: Thicker columns are necessary for supporting heavy loads.
- Material strength: Harder woods may allow for thinner columns compared to softer varieties.
Proper Spacing
Spacing your wooden columns correctly contributes to your home’s structural integrity and your desired design. You can follow classical design principles to determine column spacing. Outdoor porch columns are typically spaced up to 10 feet apart. When determining column spacing, consider the weight distribution of the structure and local building codes and regulations.
