Toenailing is a carpentry technique where nails are driven at an angle through the end of one piece of wood into another, creating a strong joint by leveraging the holding power of the nail’s angled position. Toenailing is a useful method when attaching wall studs to sole plates, rafters to top plates, and a handful of other construction situations. In this guide, we’ll explore the proper techniques, tools, and tips for successful toenailing.
Tools for Proper Toenailing
To properly toenail, you’ll need the right tools.
Hammers and Nail Guns
For manual toenailing, a framing hammer with a waffle-faced head provides a good grip on nail heads. However, pneumatic nail guns can speed up the process for larger projects. When using a nail gun, check that it has an adjustable depth setting for precise nail placement.
Nails and Fasteners
Choose nails that are appropriate for your project. Common nails are typically used for framing, while box nails are for lighter applications. The length of the nail should be about three times the thickness of the board being nailed. For framing, 8D or 16D nails are the right fit.
Safety Equipment
Safety should be your top priority when doing any DIY project. You should wear safety glasses to protect your eyes from flying nail fragments or wood splinters. Work gloves will protect your nails and can provide you with a better grip. If you’re using power tools, hearing protection should also be considered.
Preparing for Toenailing
Proper preparation will make woodworking projects much easier. Taking the time to measure, mark, and position your materials correctly will result in more accurate and durable joints.
Measuring and Marking
Start your project by measuring and marking the positions where your studs or other framing parts will be placed. Use a pencil and a speed square for more accurate markings. For wall studs, the typical spacing is 16 inches in the center, but always check local building codes for requirements.
Positioning the Wood
Place your framing parts in their proper positions after measuring and marking before nailing. If you’re working with wall studs, check that they’re perfectly vertical using a level. For other applications, like attaching rafters to top plates, make sure your pieces are aligned correctly according to your woodworking project plans.
Step-by-Step Toenailing Technique
For those new to woodworking, mastering the toenailing technique takes practice. We’ve compiled some steps to make the job easier and help you put together strong, durable joints.
Setting the Correct Angle
The angle for toenailing should be approximately 55 degrees. This provides a combination of holding power and makes it easier to drive the nail. To do this, start your nail about one-third of the way down from the top edge of the board before you start nailing.
Driving the First Nail
Start by tapping the nail lightly to set it at the right angle. Once it’s started, drive it in about halfway. This initial nail will help hold the board in position while you drive the remaining nails in through the wood.
Completing the Toenail Joint
After the first nail is partially driven, add one of two more nails on the same side, following the same angle. Then, move to the opposite side of the board and drive one of two more nails at the same angle but in the opposite direction. This creates a strong, balanced joint that can resist movement in every direction.
Common Toenailing Applications
Toenailing can be used for all sorts of situations, but wall studs to sole plates, rafters to top plates, and deck joists to ledger boards are most common when you need to use the toenailing technique.
Wall Studs to Sole Plates
One of the most common uses of toenailing is attaching wall studs to sole plates for framing. This method keeps the studs properly spaced and aligned to provide a strong connection to the bottom plate of the wall.
Rafters to Top Plates
When constructing roof systems, toenailing is often used to secure rafters to the top plates of the walls. This helps to transfer the roof’s weight to the wall more evenly for better structural integrity.
Deck Joists to Ledger Boards
In deck construction, toenailing can be used to attach joists to ledger boards. While metal joist hangers are often used for this application, toenailing can be used with hangers or as a temporary measure to hold joists in place while installing hangers.
Tips for Successful Toenailing
Implementing these tips can help improve your toenailing technique and the overall quality of your woodworking joints. Spacer blocks, pre-drilling, and avoiding wood splitting are all important tactics for toenailing.
Using Spacer Blocks

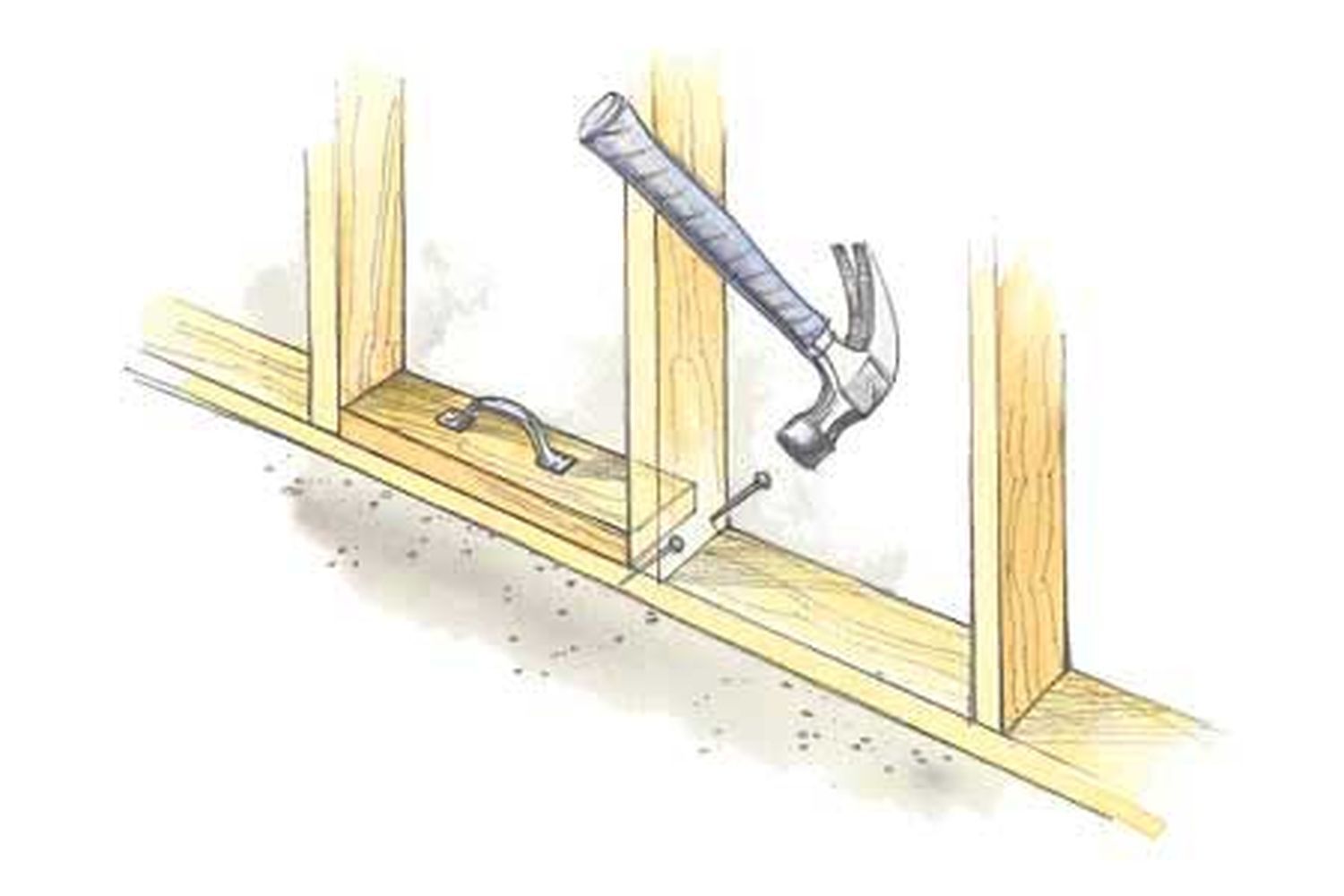

Spacer blocks can improve accuracy when nailing studs or other framing parts. Cut a 2×4 block to the desired spacing between studs (typically 14 ½ or 22 ½ inches for 16-inch or 24-inch on-center spacing). Attach a handle to the top of the spacer for easy placement and removal. This tool allows you to position each stud without having to measure each time.
Pre-drilling for Hardwoods
Pre-drilling is a good option when working with hardwoods or when there’s a chance of splitting. To create a pilot hole, use a drill bit slightly smaller than the nail diameter. This makes it easier to drive the nail at the correct angle.
Avoiding Wood Splitting
To prevent wood splitting, especially if you’re working near the end of a board, try blunting the nail tip slightly with a hammer. This crushes the wood fibers rather than wedging them apart, reducing the likelihood of splitting. Avoid nailing too close to the edge; you should stay at least ¾ inch away from the end of the board.
Troubleshooting Toenailing Issues
It’s not uncommon to experience some issues when toenailing. We’ve put together the most common issues and how to quickly fix them, including bent nails and wood damage.
Dealing with Bent Nails
If a nail bends while using your hammer or nail gun, don’t try to straighten it while it’s in the wood. Instead, remove it completely using a nail puller. Start with a new nail, maintaining the correct angle while driving.
Fixing Misaligned Joints
If you notice a misalignment after toenailing, you can often use a sledgehammer with a block of wood to tap the framing piece into the correct position. For major misalignments, remove the nails and start over for the structural integrity of your project.
Addressing Wood Damage
If repeated nailing causes wood damage, such as splitting or splintering, you may need to reinforce the joint. Consider using wood glue with the nails, or add a metal bracket for extra support. If these solutions don’t work, it may be best to replace the damaged piece of wood.
Alternative Fastening Methods
While toenailing can be a great technique, there are situations where alternative methods might be better or provide additional strength.
Metal Connectors and Brackets
For high-stress joints of in areas prone to high winds or seismic activity, metal connectors and brackets provide more durability. Joist hanger, hurricane ties, and framing anchors are some examples of metal fasteners that can be used in place of or in addition to toenailing.
Screws and Structural Screws
In some cases, screws can be a good alternative to nails. They provide good holding power and can be easily removed if needed. Stutrucal screws are designed for load-bearing applications and can often replace traditional nailing methods in framing.
Maintaining Toenailed Joints
Proper maintenance of toenailed joints is important for the long-term stability and safety of your structure. Regular inspections and reinforcement techniques will keep your structure supported.
Inspecting for Looseness
Regularly inspect toenailed joints for signs of looseness or separation. This is important in areas subject to vibration or movement, such as deck structures. Gently test the joint by applying pressure to see if there’s any give or movement.
Reinforcing Existing Joints
If you find a toenailed joint that’s become loose over time, you can usually reinforce it without having to disassemble the structure. Adding additional nails, using longer nails, or installing a metal bracket can strengthen the connection. In some cases, epoxy can be used to fix rotted wood near the joint.
Our Conclusion
When done correctly, toenailing creates strong and durable joints for a wide range of construction and woodworking projects. For those looking to expand their woodworking skills further, learning about hand planes can be a great next step for new DIY designs. By following the steps and tips outlined in this guide, you can successfully tackle a new toenailing project.
