For being so simple, chalk lines are incredibly helpful and can save you time and money. They’re used to create perfectly straight lines on flat surfaces such as plywood, drywall, or a board that might need trimming. Learning how to use and make the perfect chalk line enables a carpenter or do-it-yourselfer (DIYer) to work faster and more accurately.
What Is a Chalk Box?

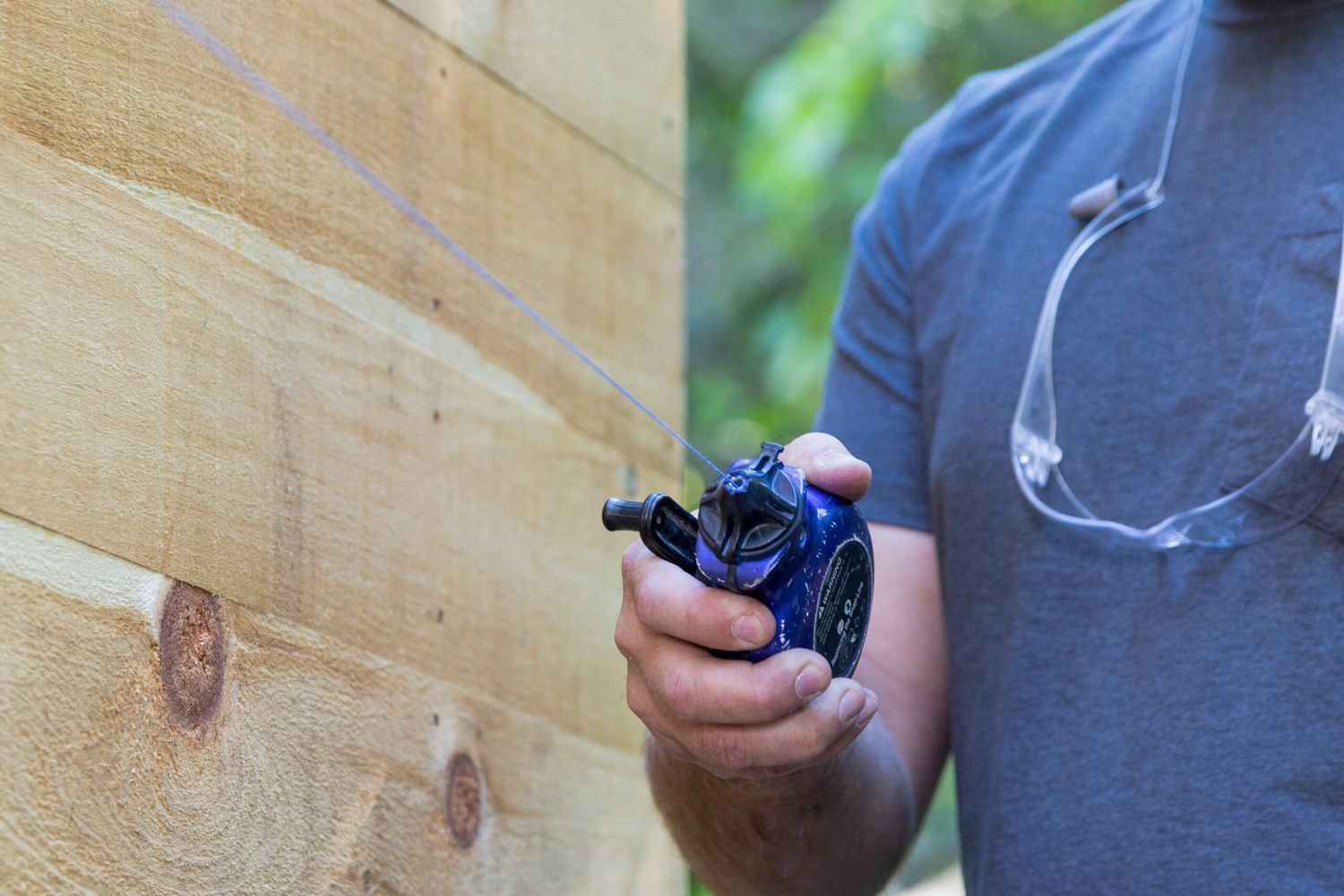

A chalk box, also known as a chalk line reel, is the primary tool for creating chalk lines. It consists of a hollow case containing a reel with a retractable string. The string is coated with chalk powder, which leaves a mark when snapped against a surface. Chalk boxes come in various sizes and designs and with different featuers. Some models include built-in levels or refillable compartments for chalk powder, offering added convenience.
Other helpful tools for creating chalk lines include:
- Measuring tape
- Pencil for marking endpoints
- Nails or tacks for anchoring the line
- Level for ensuring accuracy
How To Use a Chalk Line
Chalk lines are simple to use. Just make sure your chalk box has string inside and a bottle of powdered chalk. Here’s how.
Step 1: Load the Chalk Box
Most chalk boxes have small sliding windows on their sides. Slide the window open, aim the tip of the chalk bottle inside, and give a few light squeezes to load the box. It doesn’t need to be full. Be sure to slide the window shut when you’re done.
Step 2: Tap the Chalk Box on a Hard Surface
To coat the string, give the box a few solid taps on a hard surface. This kicks the dust up inside the chalk box and helps coat the string. You should do this every time you use a chalk line.
Step 3: Stretch the Line
In this step, you’re setting up the chalk line. First, make sure the reel inside the chalk box can spin freely, so the string can easily be pulled out. Take the hook at the end of the string and attach it to the starting point of the line you want to mark.
Step 4: Pull It Tight
For a chalk line to provide perfectly straight lines, you must pull it tight. Think of this like a string on an archery bow: not so tight that it breaks, but tight enough that it will give a good snap. Once pulled tight, hold the string against the surface at your mark.
Step 5: Snap It
Holding the chalk line in place, reach out toward the middle and pinch it between your fingers. Pull it straight up off the surface and let it snap back down. This should leave a crisp, clean chalk line on the surface.
Tips for Making a Chalk Line
The above guide outlines the basic steps, but there are times and conditions that make snapping a perfect chalk line challenging. The following tips will help.
Choose Your Color Wisely
Powdered chalk comes in red, blue, white, and black. Here are the differences:
- White chalk leaves a very light line that wipes away easily and won’t stain, making it great for finish and indoor use.
- Blue chalk is a bit easier to see than white, and it wipes off relatively well. It can leave a blue residue on some surfaces, but it will fade away over time.
- Red chalk is easier to see and formulated to be more permanent than blue. It can withstand wind and very light rain but it can also permanently stain surfaces, so it’s best for rough, outdoor work like framing and sheathing.
- Black chalk leaves near-permanent marks. It won’t wipe off, and it doesn’t fade in the rain or sun. It will stain almost anything it touches.
Don’t Overfill the Chalk Box
You don’t need to fill the chalk box. It’s a good idea to give the chalk bottle a few squeezes, tap the box, and then hook the string onto something. Unravel the string a few feet until it looks clean, then give another squeeze or two into the chalk box. Reel the string back in and repeat. By the third time, you should have enough chalk on the line, but not so much that the string will jam.
Use a Nail as an Anchor
If you’re not able to hook the end of the chalk line onto the edge of the work surface, you can drive a nail partially into the surface and use it as an anchor. Simply slide the cutout in the middle of the hook over the nail head. Just be sure that the teeth on the hook are pointing upward so they don’t prevent the string from touching the surface.
Also, drive the nail at an angle, with the head of the nail tilted away from the chalk line. This will prevent the hook from sliding up the nail as you apply tension.
Use Nails for Long Chalk Lines
Building on the previous tip, snapping a chalk line on surfaces over 8 or so feet can be hit or miss. It’s hard to get the right amount of tension, and you can’t reach the middle of the line while keeping the string on the edge. Instead, you can use nails to hold the line in place while you add tension.
Drive one nail for the hook (if necessary) and another at the end of the chalk line. Wrap the string around the nail at the end and pull it tight. You can even wrap it around the nail a few times to create more friction to retain your tension. Then, keeping tension on the string, walk to the middle of the line and give it a good snap.
Mark the Surface at the Very Ends
Trying to line up marks for a chalk line on a surface can be frustrating, especially if they’re not on the very edge of the sheet, deck, or board. Make your life easier (and your string more accurate) by measuring and marking the surface at its very edge. This allows easy hook and string alignment.
Use Hairspray on Windy Days
Chalk lines can disappear on windy days. You can preserve it with a bit of aerosol hairspray. Just snap the line and then coat it with one pass of spray. The chalk will last longer and the wind won’t be able to blow it away.
Give the Stretched Line a Quick Flick
Occasionally, a chalk line will have too much chalk on it, and that can leave thick, blurry surface lines. To prevent this, hook the end of the chalk line onto the surface and stretch the line. With a bit of tension on the line, give it a quick flick or slight snap in the air to remove the excess chalk. The string will now create cleaner, crisper lines.
Multiple Line Snapping
Some projects may require snapping multiple lines parallel or perpendicular to each other:
Creative Uses for Chalk Lines Beyond Construction
While chalk lines are primarily used in construction, they have other creative applications in different fields.
- Landscaping: Create straight edges for garden beds or pathways, helping to translate your landscape design accurately.
- Sports: Mark temporary lines on playing fields for activities like soccer or baseball, ensuring straight lines without permanent markings.
- Art projects: Use chalk lines for large-scale geometric designs. Artists find it useful for mural works where large, straight lines are needed.
- Home decor: Create straight lines for painting accent walls or stripes. This ensures a professional finish without the need for costly tools.
- Event planning: Marking layouts for events such as weddings or parties to ensure organized and straight arrangements.
- Tailoring: Mark straight lines on fabrics for cutting and stitching large pieces.
