Measuring your window sill angles may seem like geometry homework, but it’s an important step if you’re considering replacing your windows. These angles can make the difference between a snug fit and a DIY disaster.
The process is simpler than you may think, but many homeowners don’t know how to do it. If you’re struggling with your measurements, follow this guide for step-by-step instructions on how to measure window sill angles with ease.
Why Do I Need Accurate Window Sill Measurements?
Window sill angles play a big role in the functionality and aesthetics of your windows. You need accurate measurements for the following reasons:
- Proper fit: Precise angle measurements ensure that replacement windows or storm windows fit snugly against the sill, preventing gaps that could lead to drafts or water leakage.
- Energy efficiency: A well-fitted window contributes to better insulation, helping maintain comfortable indoor temperatures and reducing your energy costs.
- Water management: The correct sill angle facilitates proper water drainage, protecting your home from moisture-related issues such as rot or mold.
By taking the time to measure the sill angles correctly, you can set the foundation for a successful window replacement.
Gather Your Window Sill Measuring Tools
To calculate window sill angles, you have to have the right tools. These traditional tools are reliable, affordable, and don’t require batteries or technical know-how to operate. Here’s what you’ll need:
- Carpenter’s square: This L-shaped tool is essential for creating a reference point against the window frame.
- Ruler or tape measure: Use this together with the square to measure the gap between the square and the sill.
- Angle finder: A manual tool specifically designed to measure angles.
- Protractor: A semicircular tool marked with degrees for measuring angles.
Step-by-Step Guide To Measure Window Sill Angles
Take your time and follow these steps exactly to measure your window sill angles using traditional tools.
Prepare Your Workspace
Before you measure, we advise these steps to ready your workspace:
- Clear the area around the window, removing any debris that might interfere with your measurements.
- Clean the window sill and frame to ensure an accurate reading.
- Gather your measuring tools. To follow this guide, you’ll need a carpenter’s square, tape measure, and the angle reference table provided below.
Position the Square

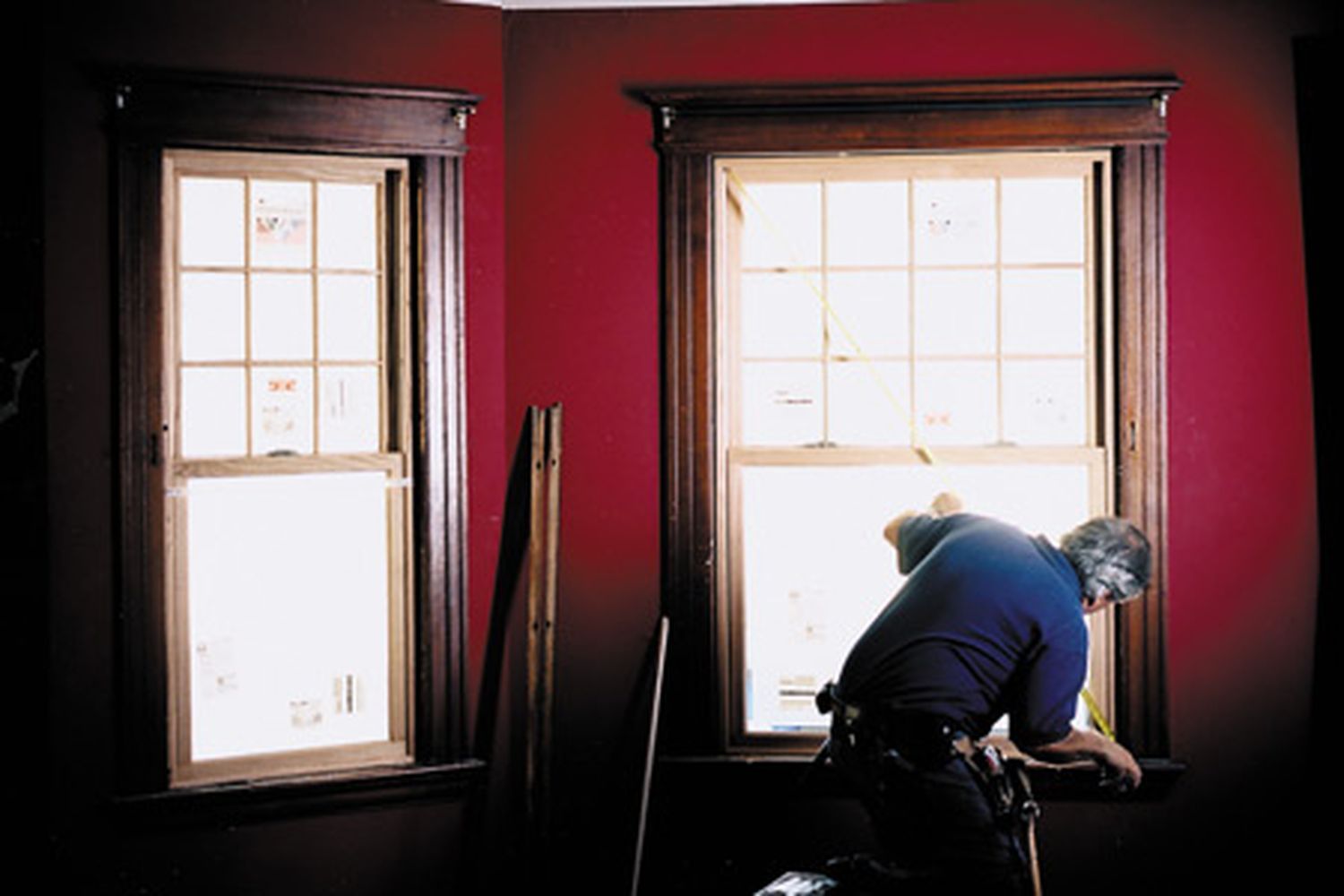

To make measurements, first, you need to position the carpenter’s square. Place the carpenter’s square against the outside window stop, checking that it’s flush against the surface. Hold the square steady in this position throughout the measurement process.
Take Measurements
Now that your setup is ready, it’s time to measure:
- Using your ruler or tape measure, measure the vertical distance between the 2-inch mark on the square and the top of the sill.
- Record this measurement exactly, as even small variations can affect the angle calculation.
Interpret the Results
Use the following table to determine the sill angle based on your measurements:
| Gap | Angle |
| 1/8 inch | 4 degrees |
| 1/4 inch | 7 degrees |
| 3/8 inch | 11 degrees |
| 1/2 inch | 14 degrees |
If your measurement falls between the listed values, the sill angle is also between the corresponding degree values. For more precise readings, consider using a digital angle finder or consulting a professional.
Troubleshooting Window Sill Measurement Challenges
Even with the right tools, you may run into some challenges when measuring window sill angles:
- Uneven surfaces: If the sill is warped or damaged, take multiple measurements and average the results.
- Obstructions: Remove any hardware or weatherstripping that might interfere with your measurements.
- Complex window designs: For bay windows or other nonstandard designs, measure each section individually.
- Inconsistent readings: If you get varying results, double-check your technique and tool calibration.
Remember, precision is key. If you’re unsure about your measurements, it’s always best to consult a professional.
